Capillary Rheometry Limits for Post Consumer Resin in Multicavity Tools
Capillary rheometry establishes binding high-shear viscosity limits that prevent multicavity tool imbalance and part weight variance in post-consumer resins.
Orifice

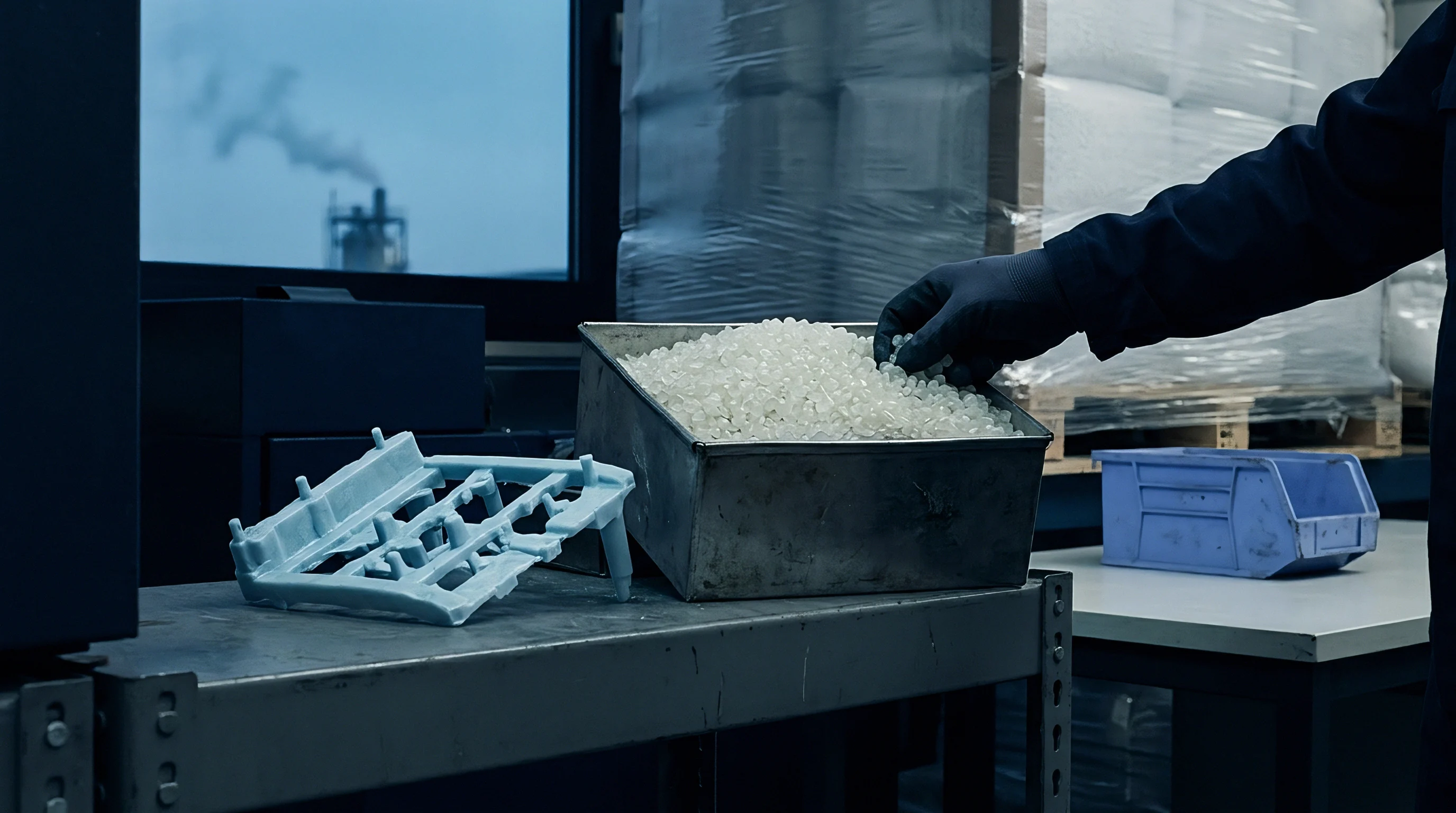

Incoming inspection of post-consumer resin still relies heavily on melt flow rate testing under ASTM D1238 or ISO 1133. That single-point index measures material displacement under static weights at low shear rates between 1 and 10 reciprocal seconds, which reveals little about gate behavior. High-cavitation tooling running 32, 64, or 128 cavities forces polymer melts through sub-millimeter gates at shear rates exceeding 10,000 reciprocal seconds.
Extrusion plastometers cannot register the shear-thinning response of contaminated or reprocessed lots at those speeds. Establishing reliable viscosity curves across an active gate requires capillary rheometry conducted under ASTM D3835 or ISO 11443.
Recycled polyolefins bring substantial batch-to-batch variation in molecular architecture. Thermal cycling breaks polymer backbones, while stray contaminants shift the shear response of the bulk melt. Two lots showing an identical nominal melt flow rate of 12 grams per 10 minutes at 230 °C under a 2.16-kilogram load can diverge by more than 35 percent in apparent viscosity inside a high-shear capillary die.
In tooling with restricted flow channels, shifts of that scale immediately unbalance cavity filling.
Capillary testing under ASTM D3835 at 230 °C and 10,000 reciprocal seconds captures true shear thinning behavior that standard extrusion plastometry misses entirely.
Melt Index Testing Blind Spots
Extrusion plastometer testing measures the mass of polymer extruded through a standard orifice over ten minutes under a falling deadweight. The resulting value describes flow near the zero-shear plateau. In an injection mold, by contrast, the gate creates steep shear gradients that align polymer chains and slash apparent viscosity.
Post-consumer polyolefins rarely display tidy molecular weight distributions. Broader distributions heighten pseudoplasticity, causing the melt to thin rapidly under stress. If two lots match on melt flow index but diverge in molecular breadth, their filling profiles in multicavity tools drift apart.
Capillary rheometry isolates this non-Newtonian divergence by stepping the material through controlled piston speeds.
Are Single Point Flow Tests Misleading in Thin Gates?
Thin-wall packaging molds frequently run gate diameters between 0.5 and 0.8 millimeters. At production injection speeds, volumetric throughput easily drives shear rates inside those orifices past 25,000 reciprocal seconds. Single-point bench tests cannot extrapolate viscosity out to those rates.
Viscosity curves plotted across multiple shear rates often cross. A recycled lot displaying higher viscosity than virgin resin at low shear can thin out well below it at high shear, driven by additive slippage or high-density polyethylene cross-contamination. Mapping the material from 100 to 50,000 reciprocal seconds via capillary testing replaces guesswork with the actual curve.
| Material Grade | MFR (2.16 kg, g/10 min) | Viscosity at 100 s⁻¹ (Pa·s) | Viscosity at 1,000 s⁻¹ (Pa·s) | Viscosity at 10,000 s⁻¹ (Pa·s) | Power-Law Index (n) |
|---|---|---|---|---|---|
| Virgin Homopolymer PP | 12.2 | 410 | 115 | 28 | 0.38 |
| PCR Injection PP (Lot A) | 11.8 | 460 | 120 | 24 | 0.31 |
| PCR Injection PP (Lot B) | 12.5 | 380 | 102 | 29 | 0.42 |
| PCR PP with 8% HDPE Contamination | 11.9 | 520 | 138 | 22 | 0.26 |
Capillary Viscosity Limits across Injection Shear Rates
Setting meaningful acceptance limits means establishing viscosity windows at the shear rates actually found in the tool. Procurement specifications define viscosity limits at three specific shear rate intervals: 500 reciprocal seconds for the runner manifold, 5,000 reciprocal seconds for the sub-runner, and 20,000 reciprocal seconds for the gate constriction. Holding batch variance within plus or minus eight percent across all three stops runner imbalance before resin reaches the press.
High-shear testing also captures entrance pressure losses. As melt funnels from the barrel into a narrow die entry, it experiences severe extensional stress. Recycled feedstocks carrying even slight crosslinking generate high entrance pressure drops, choking flow before it reaches the cavity.
- Apparent shear rate defines the uncorrected velocity gradient calculated directly from barrel volumetric flow and die diameter without entrance adjustment.
- True shear stress accounts for entrance and exit pressure drops along the die length via multi-die Bagley corrections.
- Non-Newtonian pseudoplasticity governs the rate of viscosity reduction as polymer chains untangle under increasing flow velocities.
- Extensional viscosity rise generates sudden pressure spikes during flow convergence into small gate apertures.
Running the test in a twin-bore capillary rheometer captures true shear viscosity and extensional flow properties simultaneously in a single sequence.
Runner
Multicavity tools depend on symmetrical runner geometry to split melt evenly. That balance assumes rheology remains uniform throughout the manifold channels. With post-consumer resin, subtle swings in melt temperature or shear sensitivity distort flow distribution across the mold plate.
Drops closer to the sprue receive hotter, less viscous melt, while outer drops deal with cooler, stiffer material.
Shear heating through runner channels compounds the problem. Stiff fractions generate localized frictional heat along channel walls, reducing local viscosity and distorting flow splits at manifold junctions. That thermal gradient skews fill times, flashing inner cavities while shorting perimeter parts.
Gel particles and unmelted contaminants elevate entry pressure losses before the melt enters the capillary bore.
Pressure Drops along Balanced Manifolds
Runner sizing typically relies on Newtonian or standard power-law approximations for pressure drop calculations. Recycled polyolefin formulations rarely behave so predictably across operational temperatures. Minor batch shifts in mineral filler content or pigment loading alter wall slip inside polished steel runners, throwing off modeled drops.
Pressure transducers installed behind manifold drops quickly pick up this distribution instability. A ten percent lot-to-lot rise in capillary viscosity at 2,000 reciprocal seconds can open a 15-bar pressure disparity between primary and tertiary branches. Compensating with higher injection pressures accelerates tool wear and drives up machine power draw.
Viscous Dissipation in Cold and Hot Runners
Melt passing through cold runners forms a frozen boundary layer that narrows the active flow channel. If recycled resin contains degraded low-molecular-weight fractions with faster crystallization kinetics, that frozen layer thickens rapidly. The restricted core forces shear rates higher, setting off uncontrolled viscous dissipation.
Hot runner systems eliminate frozen boundary layers but introduce degradation risks of their own. Stagnant zones around nozzle tips cause thermal breakdown in sensitive recycled resin. These degraded fractions wash into cavity gates as low-viscosity slugs, creating flash defects and localized surface blemishes on molded parts.
- Dry incoming resin to moisture levels below 0.02 percent to avoid hydrolytic chain degradation inside hot runner channels.
- Mount capillary rheometer test dies matched to the exact length-to-diameter ratio of the production hot runner gate.
- Measure apparent viscosity across three distinct temperatures spanning the processing window.
- Calculate the temperature shift factor to determine processing sensitivity across the manifold.
Molecular Weight Broadening in Recycled Feedstocks
Mechanical recycling aggregates disparate feedstocks, widening the molecular weight distribution. High-molecular-weight fractions elevate melt elasticity, while low-molecular fragments accelerate shear thinning. That broad spread leaves the resin unusually sensitive to velocity changes across manifold junctions.
Run the press too slow, and high-molecular fractions dominate, resisting flow and causing short shots in outer cavities. Push injection speed too high, and low-molecular components thin rapidly, causing gate jetting and flash inside cavities. Reliable capillary data must bound this processing window before tool steel is cut.
A broad molecular weight distribution is often credited with improving flow across diverse tooling geometries, yet the accompanying shear sensitivity regularly destabilizes high-speed cavity balance.
Variance
Post-consumer polyolefin lots carry substantial chemical and physical variance. Trace contaminants such as polyethylene in polypropylene streams alter crystallization kinetics and shear response. Even a two percent inclusion of high-density polyethylene shifts the non-Newtonian index enough to throw off flow balance across multicavity tooling.
Accumulated thermal histories from prior use and multiple extrusion cycles degrade thermal stabilizers. Unstabilized resin lots undergo progressive chain scission inside the plasticizing barrel during normal machine residence times. Nozzle melt viscosity then drifts downward over the course of a production shift.
Purchasing contracts citing ISO 11443 viscosity limits at 5,000 reciprocal seconds permit immediate delivery refusal when apparent viscosity exceeds ten percent of target.
True Viscosity Spread in Post Consumer Lots
Maintaining lot consistency in recycled plastics is difficult without strict rheological qualification protocols. Capillary rheometry testing across consecutive railcars reveals substantial viscosity spread. Variations in mineral filler, carbon black dispersion, and elastomer impact modifiers further widen the rheological envelope.
Raw testing must be adjusted with the Bagley correction to strip out end effects where melt funnels into the die entrance. A single capillary die overestimates true shear viscosity by conflating entrance pressure loss with steady shear resistance along the die wall. Twin-bore rheometers using zero-length and long dies simultaneously establish true shear stress values.
- Chain scission degradation reduces average molecular weight, depressing viscosity across both low and high shear regimes.
- Crosslink formation introduces high-molecular networks that elevate extensional viscosity and increase gate entry pressures.
- Elastomer modifier loading alters the shear-thinning slope, shifting the flow balance between runner branches and gate orifices.
- Inorganic filler dispersion elevates low-shear yield stress, hindering complete cavity packing during the holding phase.
Bagley and Rabinowitsch Corrections in Incoming Inspection
Feeding uncorrected rheometer data into mold-filling simulations introduces major errors. The Rabinowitsch correction adjusts apparent shear rates to match non-Newtonian velocity profiles at the die wall. Skipping this correction underestimates true wall shear rates by up to 30 percent in highly pseudoplastic polyolefins.
The Bagley correction plots entry pressure loss against die length-to-diameter ratios. Recycled lots with high elastic recovery generate large Bagley correction factors. In the mold, those lots exhibit excessive die swell upon clearing gates, locking in residual stress and causing post-mold warpage.
Thermal Degradation Curves for Successive Heat Histories
Capillary rheometer thermal stability testing measures viscosity decay over prolonged residence times at processing temperatures. Virgin resins maintain stable viscosity profiles for over 20 minutes under nitrogen purge. Recycled resins containing exhausted antioxidant packages exhibit rapid viscosity decay within six minutes.
That breakdown creates immediate problems during process interruptions. Resin idling inside the machine barrel loses molecular weight, shifting its viscosity profile out of specification. Upon cycle restart, the low-viscosity melt flashes tool parting lines and damages ejector pin mechanisms.
Determining the additive restabilization required to arrest high-shear viscosity decay remains essential before running mechanically recycled lots through tight tooling.
Balance
High-cavitation tooling demands uniform filling kinetics to produce parts within tight dimensional tolerances. When apparent viscosity shifts between lots, cavity fill times diverge. Inner cavities fill and pack completely while outer cavities lag behind, causing part weight variations, sink marks, and dimensional rejections.
Balancing multicavity tooling for post-consumer resin requires rheological data captured at shear rates representative of the entire filling phase. Tool designers adjust runner diameters and gate lands based on capillary curves. A tool balanced solely for virgin material will run severely out of balance when loaded with recycled batches.
Should Tool Fill Imbalances Trigger Lot Quarantine?
Part mass divergence between cavities correlates directly with high-shear viscosity deviations. When incoming lots wander beyond defined capillary viscosity boundaries, outer tool positions quickly drift out of dimensional tolerance. Quarantining lots based on rheometer data prevents costly tool damage and scrap accumulation.
Statistical process control systems track part weights across all tool drops. A high-viscosity lot starves outer cavities, producing immediate weight drops below lower specification limits. Isolating suspect lots at the receiving dock protects production schedules and minimizes mold downtime.
Cavities located furthest from the sprue register short shots first whenever recycled feedstocks show elevated high-shear resistance.
Cavity Weight Dispersion across Sixty Four Drops
Operating a 64-cavity tool on recycled polypropylene reveals immediate part mass dispersion. Tooling designed with naturally balanced H-pattern runners maintains tight weight tolerances with virgin material. Introducing a post-consumer lot with a 15 percent shift in high-shear viscosity increases the part weight standard deviation by more than three hundred percent.
Holding pressure distribution degrades rapidly across the mold plate. Cavities filling early experience extended effective packing times, raising internal stress levels. Cavities filling late experience premature gate freeze, preventing proper densification and triggering severe post-mold shrinkage.
| Lot Designation | Viscosity at 15,000 s⁻¹ (Pa·s) | Fill Time Range (s) | Inner Cavity Mass (g) | Outer Cavity Mass (g) | Mass Spread (%) |
|---|---|---|---|---|---|
| Target Baseline PCR | 21.5 | 0.82 – 0.86 | 2.45 ± 0.02 | 2.43 ± 0.02 | 0.82 |
| High-Viscosity Lot C | 26.2 | 0.82 – 1.04 | 2.52 ± 0.03 | 2.31 ± 0.05 | 8.70 |
| Low-Viscosity Lot D | 17.8 | 0.74 – 0.81 | 2.58 ± 0.04 | 2.49 ± 0.03 | 3.55 |
| Crosslinked Lot E | 28.9 | 0.84 – 1.18 | 2.56 ± 0.04 | 2.18 ± 0.08 | 16.05 |
Worked Analysis of Part Mass Variation
Evaluating mass variation requires clear operational assumptions. Assume a 64-cavity medical closure tool running a 2.45-gram nominal part in post-consumer polypropylene. The injection fill time is set to 0.85 seconds, generating an apparent shear rate of 18,000 reciprocal seconds at the 0.6-millimeter sub-gate.
Nominal holding pressure is 450 bar for 2.5 seconds.
Introducing a resin lot with apparent viscosity 20 percent above target at 18,000 reciprocal seconds alters filling dynamics. Pressure losses through the runner branches increase by 28 bar. The effective pressure reaching the outer gates drops from 420 bar to 372 bar.
Outer cavity fill times lag by 0.18 seconds, reducing effective holding time before gate freeze from 2.5 seconds to 1.9 seconds.
The resulting outer part mass drops to 2.31 grams, representing a 5.7 percent deficit. Inner cavities receive excessive packing pressure, elevating part mass to 2.52 grams. Total cavity-to-cavity mass variation expands to 8.7 percent, well outside the allowable two percent manufacturing window.
The entire production run produces unserviceable parts with severe thread dimensional defects.
Molding facilities running off-spec material accumulate substantial scrap rates, face elevated customer sorting charges, and risk catastrophic parting-line flash wear on expensive multicavity tool steel.
Claim
Procurement contracts for post-consumer resin must incorporate binding rheological limit clauses. Relying entirely on melt flow index values leaves buyers exposed to severe processing failures. Specification sheets must define acceptable viscosity corridors across multiple shear rates generated during high-speed injection.
Establishing clear receiving dock test criteria allows rapid quarantine and rejection of non-conforming shipments. Implementing capillary testing on blended railcar samples isolates out-of-spec batches before material enters storage silos. Enforcing rigorous rheological acceptance criteria protects tooling investments and guarantees stable production cycles.
Specification Envelopes for High Shear Procurement
Procurement documents define upper and lower apparent viscosity thresholds at both low and high shear rate regimes. Contracts specify test parameters under ASTM D3835, detailing die geometry, testing temperature, and shear rate test points. Defining a narrow viscosity tolerance band of plus or minus eight percent at 10,000 reciprocal seconds ensures drop-in processability.
Specifications also define limits on entrance pressure loss to control melt elasticity. Capping the Bagley entry pressure loss prevents excessive gate stress and warpage in flat packaging components. Clear boundaries protect buyers against contaminated or degraded resin lots.
Commercial Chargebacks on off Spec Recyclate
Receiving material that fails capillary specifications triggers formal commercial remedies. Contracts stipulate vendor liability for downtime costs, tooling cleanup, and scrap disposal resulting from out-of-spec deliveries. Verified capillary rheograms provide indisputable technical evidence during commercial settlement negotiations.
Compounders supplying post-consumer resins face direct financial penalties for unannounced formulation shifts. Adding unauthorized mineral fillers or low-grade regrind to meet nominal melt flow rates alters high-shear viscosity profiles, exposing suppliers to chargeback claims. Technical audits combined with rheological verification maintain supply integrity.
Rejection Thresholds at the Receiving Dock
Fast-track receiving protocols utilize high-speed capillary rheometers to verify incoming bulk shipments within two hours of arrival. Resin lots failing defined shear corridors face immediate rejection before railcar unloading commences. Proactive verification prevents silo cross-contamination and maintains plant efficiency.
Receiving inspection documents record apparent viscosity at 1,000, 5,000, and 15,000 reciprocal seconds alongside standard melt flow values. Retaining physical pellet samples alongside rheological certificates of analysis creates an auditable quality trace for every manufacturing batch. Tight specifications enforce processing consistency across high-volume multicavity molding operations.
Supply agreements incorporating clause 4.2 of the International Plastics Sourcing Standard mandate vendor credit reimbursement whenever capillary viscosity at 10,000 reciprocal seconds deviates more than eight percent from the qualified reference envelope.
