Cross Border Polymer Migration Testing Standard Parameters

Simulant

Testing food-contact polymers relies on standardized liquid and solid media that mimic how actual foods pull substances out of plastic matrices. Laboratory testing uses target solvents instead of real food because real matrices interfere with chromatographic measurements. Choosing a simulant comes down to the food’s polarity, fat content, acidity, and alcohol level.

In Europe, Annex III of Commission Regulation EU 10/2011 sets out six standard test media. Simulant A is ten percent ethanol by volume, representing hydrophilic foods. Simulant B uses three percent acetic acid by weight for acidic environments with a pH below 4.5.

Simulant C contains twenty percent ethanol for foods up to that alcohol concentration. Simulant D1 uses fifty percent ethanol to extract lipophilic substances and oil-in-water emulsions. Simulant D2 uses vegetable oil ~ typically refined olive oil or high-oleic sunflower oil ~ for fatty foods.

Finally, Simulant E employs modified polyphenylene oxide, commercially known as Tenax, to simulate dry food contact at elevated temperatures.

The United States takes a different route under FDA 21 CFR 176 and 177, relying on distilled water, eight percent ethanol, fifty percent ethanol, and n-heptane as substitute fatty extractants. Chinese GB 31604 standards overlap somewhat with European definitions, but specify distinct ethanol ratios and temperature scaling to account for traditional hot foods. These discrepancies create direct technical hurdles during cross-border compliance reviews.

Ethanol Ratios and Extraction Mechanics

Solvent polarity dictates how aggressively a test medium draws low molecular weight additives out of a plastic matrix. Lower alcohols like ethanol plasticize polar and moderately non-polar polymers, causing chains to swell and accelerating migrant diffusion. At ten percent concentration, ethanol mimics soft drinks, sliced fruits, and aqueous preparations without disrupting the bulk polymer structure.

Bumping ethanol content to fifty percent alters matrix swelling dramatically, particularly in polyolefins like polypropylene and low-density polyethylene. The fifty percent mixture acts as a severe test medium for dairy goods, spirits, and oil-in-water emulsions. Polyolefin packaging exposed to fifty percent ethanol experiences accelerated diffusion rates that can exceed real-food migration rates by a factor of ten.

Chromatographic analysis of fifty percent ethanol extracts frequently detects antioxidant breakdown products, slip agents like erucamide, and ultraviolet stabilizers that would remain fully bound during normal shelf life.

Tenax contact at forty degrees Celsius for ten days generates baseline migration data for dry food contact matrices.

Testing labs have to balance aggressive extraction against material damage. Overly high alcohol concentrations alter the crystalline morphology of semi-crystalline polymers during heat conditioning. Once swelling distorts the polymer surface, calculated diffusion coefficients cease to reflect how the boundary behaves in the real world.

Aqueous and Acidic Media Selections

Three percent acetic acid solutions flag metal catalyst residues and basic degradation products susceptible to protonation. Acidic media solubilize metallic ions from inorganic pigments, heat stabilizers like zinc stearate, and glass fiber sizing agents. Standard exposure to three percent acetic acid measures the leaching potential of heavy metals including barium, cobalt, copper, iron, lithium, manganese, nickel, and zinc.

Distilled water serves as the baseline hydrophilic extractant across US FDA protocols, whereas European standard EN 1186 replaces pure water with ten percent ethanol for overall migration testing. Water alone fails to account for minor organic fractions present in most processed foods. Swapping pure water for ten percent ethanol increases thermodynamic solubility for organic additives while maintaining a comparable polarity index.

These regulatory boundaries remain fixed across standard testing protocols.

Aqueous media testing requires careful pH monitoring throughout the contact period. Polymer additives containing hydrolytically unstable linkages, such as certain phosphite antioxidants and ester-based plasticizers, undergo hydrolysis when exposed to acidic media at sixty degrees Celsius or higher. Hydrolysis converts parent molecules into lower molecular weight degradation products, multiplying the number of detectable chromatographic peaks and complicating quantitative specific migration calculations.

Modified Polyphenylene Oxide and Lipophilic Substitutes

Dry food contact testing utilizes porous synthetic polymers designed to absorb volatile and semi-volatile migrants at elevated temperatures. Modified polyphenylene oxide features high thermal stability up to three hundred degrees Celsius, enabling migration testing under extreme heat conditions such as baking or microwave heating. Solid-phase extraction onto modified polyphenylene oxide captures migrants without liquid solvent absorption effects that distort plasticized films.

Fatty food contact testing historically relied on organic solvents like n-heptane, isooctane, and ninety-five percent ethanol as substitutes for vegetable oil. Vegetable oils introduce analytical complications because the oil matrix interferes with gas chromatography mass spectrometry detection of low-level migrants. Gas chromatography columns become contaminated by non-volatile triglycerides, requiring extensive clean-up steps via gel permeation chromatography or solid-phase extraction.

Substitute fatty extractants accelerate testing timelines. Isooctane contact for two days at twenty degrees Celsius provides migration levels comparable to vegetable oil exposure for ten days at forty degrees Celsius for polyolefin films. Volatile substitute solvents evaporate cleanly, concentrating extracted migrants into precise volumes for direct gas chromatography injection.

Reviewing testing reports against actual resin formulations verifies substitute solvent validity. Organic solvents cause exaggerated swelling in styrene-based polymers, polycarbonates, and flexible poly-vinyl chloride. Isooctane softens polystyrene, inducing stress cracking and artificially high extraction values that misrepresent actual fatty food contact safety.

Regulatory authorities reject substitute solvent data when the solvent alters the physical state of the polymer specimen.

Whether universal equivalency factors for modified polyphenylene oxide can ever fully match refined olive oil behavior across all high-temperature polyolefin grades remains an open analytical question in international standard harmonization.

Exposure

Thermal conditions and contact duration define the kinetic boundary of migration testing. Chemical diffusion within a solid polymer matrix increases exponentially with rising temperature, following Arrhenius relationship kinetics. Standardized exposure regimes compress real-world storage periods ranging from months to years into lab testing windows spanning hours or days.

Commission Regulation EU 10/2011 Annex V establishes standardized testing conditions designated as OM1 through OM7. Condition OM1 specifies ten days at twenty degrees Celsius, representing frozen and refrigerated storage. Condition OM2 covers ten days at forty degrees Celsius, representing ambient storage exceeding thirty days.

Condition OM3 mandates two hours at seventy degrees Celsius, simulating hot fill conditions. Condition OM4 specifies one hour at one hundred degrees Celsius, covering high-temperature heating up to reflux. Condition OM5 mandates two hours at one hundred degrees Celsius or reflux temperature, simulating hot fill followed by long-term ambient storage.

Condition OM6 covers four hours at one hundred degrees Celsius for universal high-temperature applications. Condition OM7 mandates two hours at one hundred and seventy-five degrees Celsius, representing high-temperature oven applications using non-melting polymers like polyethylene terephthalate and polyamides.

United States FDA protocols under 21 CFR 176.170 Table 2 use letter-coded Condition of Use parameters from A through H. Condition of Use A specifies high-temperature heat sterilized treatment above one hundred degrees Celsius. Condition of Use E covers room temperature filled and stored items. Condition of Use G applies to frozen storage.

Matching European OM conditions to US FDA Conditions of Use requires aligning non-identical temperature-time combinations across distinct analytical protocols.

Standardized Temperature Protocols and Arrhenius Scaling

Laboratory testing maps actual shelf life and heating cycles onto accelerated timeframes using energy activation equations. Accelerating a ten-day ambient test at forty degrees Celsius to a shorter duration at higher temperatures requires calculating the activation energy (Ea) of migrant diffusion inside the specific polymer structure.

Diffusion in polyolefins exhibits lower activation energy values, typically between forty and eighty kilojoules per mole, making migrant release sensitive to temperature shifts. High-barrier polymers like polyethylene terephthalate exhibit diffusion activation energies exceeding one hundred kilojoules per mole. Accelerating migration tests for high-barrier polymers by elevating temperature can alter the diffusion mechanism if the exposure temperature exceeds the glass transition temperature (Tg) of the plastic material.

Testing conducted above the polymer glass transition temperature overstates migration rates. Below the glass transition temperature, amorphous polymer chains remain locked in a glassy state with restricted mobility. Heating amorphous polymers above their glass transition temperature transforms the matrix into a rubbery state, unlocking rapid chain segment movement and artificial migrant release rates.

Compliance regulations mandate that accelerated test temperatures remain strictly below the polymer glass transition point unless the intended application explicitly involves thermal processing above that transition.

Maintaining steady thermal controls protects test integrity.

Testing laboratories maintain tight incubator thermal stability, usually within plus or minus one degree Celsius. Thermal fluctuations inside an extraction vessel during a ten-day test run alter local diffusion kinetics, rendering calculated diffusion coefficients invalid for regulatory filing.

Repeat Contact Testing and Extrapolation Rules

Multi-use articles like kitchen utensils or fillable containers undergo three sequential analytical cycles in fresh media. The article undergoes initial exposure under specified time and temperature conditions, after which the simulant is drained and analyzed. The identical article is immediately re-exposed to a second batch of fresh simulant under identical conditions, followed by a third exposure cycle.

Compliance evaluation for repeat-use articles rests exclusively on the specific migration level measured in the third exposure extract. The third migration yield (M3) must not exceed the legal specific migration limit (SML). Migration amounts must decrease progressively across the three sequential cycles, establishing the relationship where M1 exceeds or equals M2, and M2 exceeds or equals M3.

An upward trend where M3 exceeds M2 signals structural chemical breakdown of the polymer matrix or ongoing synthesis of secondary reaction products. Polymer degradation under repeated thermal exposure releases unreacted monomers, low-weight oligomers, or additive oxidation products into the extraction medium. A material displaying increasing migration values across sequential exposures fails compliance evaluation regardless of whether the numerical yield remains below the legal limit.

The list below identifies primary failure pathways observed during multi-cycle exposure protocols for repeat-use polymers:

• Thermal Polyolefin Oxidation occurs when dissolved antioxidant packages deplete during early contact cycles, leaving the base polymer unprotected against thermal chain scission during subsequent high-temperature exposures.
• Hydrolytic Ester Cleavage takes place in polyester and polyurethane formulations exposed to acidic or aqueous simulants at elevated temperatures, generating water-soluble carboxylic acids and alcohol monomers.
• Surface Layer Delamination develops in multilayer laminates when simulant penetration weakens tie-layer adhesives, exposing internal non-food-contact layers directly to the liquid medium.
• Secondary Amide Crystallization occurs when slip agents like erucamide migrate continuously from the bulk core to the surface, creating an increasing surface concentration gradient across extended exposure cycles.

Accelerated screening protocols for single-use articles allow short-term high-temperature exposures to replace long-term ambient storage testing. European standard EN 1186 permits testing for ten days at sixty degrees Celsius as a worst-case substitute for long-term storage exceeding thirty days at ambient or refrigerated temperatures. When testing at sixty degrees Celsius induces physical deformation or phase transitions in low-melting polyolefins, testing for ten days at forty degrees Celsius serves as the mandatory fallback parameter.

When testing repeat-use kitchenware, decreasing migration values across three consecutive contact cycles confirm structural matrix stability.

Plaque

Test specimen geometry governs the surface area exposed to extraction media during laboratory trials. Evaluating raw polymer resins requires converting bulk pellets or powders into standardized planar plaques through compression molding or injection molding. Physical dimensions, edge quality, surface roughness, and internal orientation stress within the test specimen directly dictate the measured extraction yields.

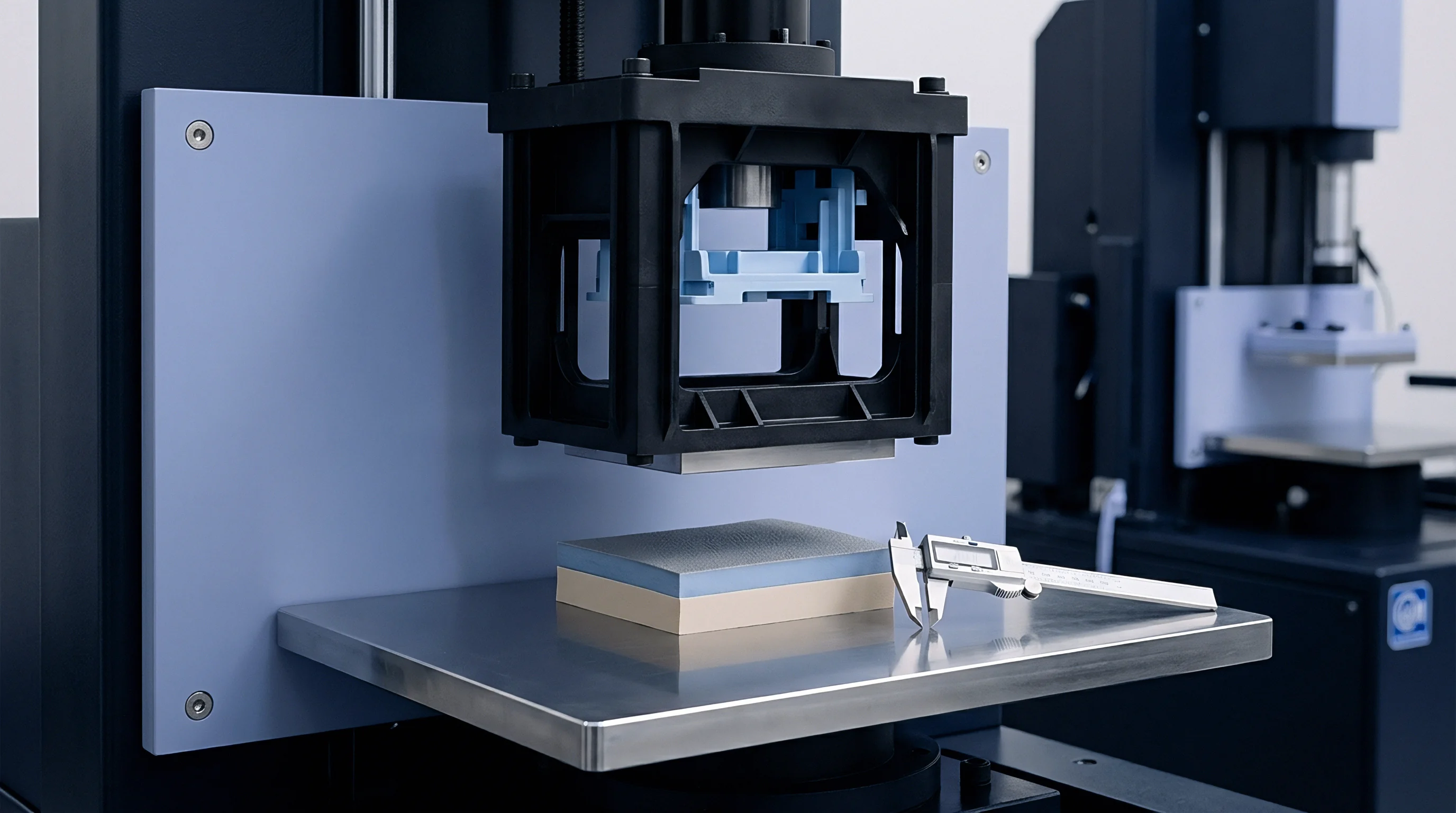

Planing flat test specimens requires controlling plaque thickness within narrow tolerances. Diffusion distance through a solid polymer slab varies with the square of the material thickness according to Fick’s Second Law. Thin plaques deplete their volatile additive inventory rapidly into the surrounding simulant, reaching thermodynamic equilibrium long before thicker plaques under identical exposure conditions.

Testing finished converted articles like blown films, thermoformed trays, or blow-molded bottles provides direct compliance data for actual commercial configurations. However, testing converted articles introduces geometrical complexity. Single-sided cell testing isolates the food-contact surface, whereas total immersion of specimen plaques extracts chemical species from both sides and all cut edges simultaneously.

Does Specimen Geometry Alter Extracted Additive Yields?

Physical dimension variations change total diffusion distance and kinetic release rates. Compression molded plaques prepared from virgin resin pellets lack the biaxial chain orientation present in commercial blown films. Unoriented polymer chains in molded plaques permit faster additive diffusion compared to highly oriented, strain-crystallized film layers.

Edge exposure in cut plaque specimens introduces an unrepresentative extraction pathway. Cut edges expose the internal core of multi-layer coextruded films, allowing simulants direct access to central barrier layers, tie-layer adhesives, and recycled core resins that are completely shielded from food contact in the intact commercial article. Standardized cell testing seals specimen edges with fluoro-elastomer gaskets, forcing extraction media contact exclusively with the functional barrier surface.

Frequent discrepancies occur between factory declarations and border laboratory test values when raw plaque test data is applied directly to multi-layer film packaging. Molded plaques overestimate total migrant yield for high-barrier coextrusions while underestimating set-off migration occurring on rolled film spools.

Film sets stored on tight master rolls undergo set-off contamination, where non-food-contact outer layer printing inks, anti-block additives, and electrostatic agents transfer physically onto the inner food-contact surface under winding pressure. Plain plaque testing completely fails to capture set-off contamination phenomena.

Surface Area to Volume Ratios and Standard Assumptions

European compliance models assign a conventional standard contact ratio of six square decimeters per kilogram of food. This standard ratio assumes a cubic package containing one kilogram of food packed inside a container possessing a total internal surface area of six square decimeters. Chemical migration measurements expressed in milligrams per square decimeter convert to milligrams per kilogram of food by multiplying the surface yield by six.

Small-format packaging deviates dramatically from the standard six-to-one surface-to-volume assumption. A small single-serve sachet or capsule containing ten grams of product exhibits a surface-area-to-volume ratio approaching twenty or thirty square decimeters per kilogram of food. Applying the conventional six-to-one conversion factor to small sachets understates the actual chemical exposure delivered to the consumer per mass of food consumed.

The numbered procedure below details the physical steps required to prepare and mount thin-film polymer specimens into single-side migration cells for high-precision analytical extraction:

1. Cut a circular test specimen from the flat region of the target film using a precision steel die, ensuring no tears, jagged edges, or surface creases alter the measured surface area.
2. Measure the exact film thickness at five distinct points across the specimen area using a calibrated micro-meter accurate to within one micrometer.
3. Clean the sealing surfaces of the stainless-steel single-side migration cell with high-purity acetone and dry under a clean nitrogen stream to eliminate particulate contamination.
4. Position the circular film specimen over the lower cell cavity with the designated food-contact surface facing upward toward the extraction chamber.
5. Place a virgin polytetrafluoroethylene gasket over the outer peripheral edge of the film to clamp the specimen perimeter without inducing mechanical tensile strain across the central test area.
6. Assemble the upper cell housing over the gasket, tightening the perimeter locking bolts in a cross-wise sequence to apply uniform sealing force.
7. Fill the test chamber with a precise volume of pre-conditioned liquid simulant using a class-A volumetric pipette, recording the exact volume introduced to within one-tenth of a milliliter.
8. Seal the filling port with a threaded stopper containing an inert fluoropolymer O-ring, checking the unit visually to confirm the absence of trapped air bubbles along the fluid interface.
9. Place the assembled cell inside a calibrated forced-air incubator maintained at the target test temperature for the duration specified by the compliance protocol.

Calculated surface-to-volume factors must reflect actual fill volumes when verifying compliance for packaging configurations under five hundred milliliters capacity. Article 17 of Commission Regulation EU 10/2011 mandates using actual volume-to-surface ratios for small packaging formats, infant food containers, and structural components where geometry generates elevated surface exposure relative to food mass.

EU Regulation 10/2011 Annex V restricts overall migration to ten milligrams per square decimeter of food contact surface.

Cell-based extraction procedures add noticeable analytical expense.

Single-side cell testing requires larger solvent volumes relative to extracted polymer mass compared to plaque immersion. Low migrant concentrations in large solvent volumes require extensive rotary evaporation or nitrogen blow-down steps to concentrate analytes above instrument detection limits. Evaporative concentration steps risk losing volatile migrants, including low molecular weight monomer residues like styrene, vinyl chloride, and acrylic acid.

Applying raw plaque migration data directly to thin-walled multilayer containers yields erroneous specific migration calculations that cause product recalls during regulatory border sampling.

Discrepancy

National regulatory systems maintain distinct testing parameters, analytical limits, and enforcement priorities for food contact plastics. The absence of a unified global testing standard forces cross-border converters and resin synthesis plants to perform multiple redundant analytical evaluations on identical polymer grades. A resin batch passing extraction limits in one market can face immediate regulatory seizure in another due to conflicting simulant definitions, differing contact schedules, or mismatched specific migration thresholds.

Cross-border supply chains operate across four dominant regulatory spheres: the European Union system governed by Regulation EC 1935/2004 and Regulation EU 10/2011; the United States system overseen by the FDA under Title 21 of the Code of Federal Regulations; the Chinese national framework managed via GB 4806 series standards; and the Japanese positive list regime established under the revised Food Sanitation Act. Each authority enforces distinct analytical methodologies for determining compliance.

European Union and United States Regulatory Divergence

Commission Regulation EU 10/2011 enforces a positive list system coupled with specific migration limits, whereas US FDA regulations under 21 CFR categorize materials by specific polymer families and extraction thresholds. European regulations apply a maximum Overall Migration Limit (OML) of ten milligrams per square decimeter of food contact surface area across all plastic materials regardless of polymer identity. US FDA regulations enforce max extractable fraction limits expressed as weight percentages of the total polymer weight, measured via total reflux extraction with specific solvents.

Under US FDA 21 CFR 177.1520, polypropylene resins undergo extraction in end-use simulants such as n-hexane at fifty degrees Celsius for two hours, followed by xylene extraction at twenty-five degrees Celsius. Passing the FDA n-hexane extractable limit of 6.4 weight percent does not demonstrate compliance with European overall migration requirements. The n-hexane extraction protocol measures total low molecular weight paraffinic solubility via aggressive swelling, whereas European Simulant D2 testing measures specific migrant diffusion under milder thermal conditions into vegetable oil.

Solvents selected for testing replicate how target foods extract migrants.

Cross-border testing parameters diverge sharply regarding substitute fatty extractants. European standards specify modified polyphenylene oxide (Tenax) as the primary simulant for dry foods and high-temperature fat contacts, whereas US FDA protocols frequently employ n-heptane at seventy degrees Fahrenheit for thirty minutes to simulate short-term fatty contact. N-heptane acts as a powerful solvent that dissolves low-density polyolefins at elevated temperatures, generating severe matrix degradation that bears no physical relationship to actual food contact mechanisms.

Chinese National Standards and Asian Market Frameworks

GB 4806 standards in China align closely with European positive lists but introduce specific testing temperatures and consumption factor parameters unique to regional food preparation habits. Chinese standard GB 4806.7-2016 for plastic materials specifies overall migration testing parameters using four percent acetic acid instead of the European three percent acetic acid concentration. Increasing acetic acid concentration to four percent increases the extraction of lead, cadmium, and zinc stabilizers from complex PVC and rubber compounds.

Japanese food contact regulation transitioned from a negative list system to a positive list framework under the Food Sanitation Act amendments. Japanese analytical methods under Notification No. 370 prescribe extraction conditions including water, four percent acetic acid, twenty percent ethanol, and n-heptane. Japanese exposure schedules frequently utilize sixty degrees Celsius for two hours as a standard baseline, differing from European ten-day ambient exposure conditions.

The comparative table below outlines the analytical parameters required across major international regulatory jurisdictions for evaluating plastic packaging materials:

Analytical quantification thresholds for specific migrant species vary by orders of magnitude across borders. Bisphenol A (BPA) provides a clear example of cross-border regulatory divergence. European Union Regulation 2018/213 reduced the Specific Migration Limit for Bisphenol A in plastic food contact materials to 0.05 milligrams per kilogram of food, down from the previous 0.6 milligram per kilogram limit.

In contrast, US FDA regulations prohibit BPA in infant feeding bottles and sippy cups but permit its continued use in general food-contact polycarbonate packaging subject to historical extraction rules.

Primary Aromatic Amines (PAAs) represent another critical area of cross-border discrepancy. European standards enforce a zero-tolerance approach for PAAs derived from azo dyes or polyurethane adhesives, setting a non-detectable threshold of 0.01 milligrams per kilogram of food for total PAAs, with individual carcinogenic PAAs restricted to 0.002 milligrams per kilogram. Chinese standard GB 4806.11 specifies a combined PAA limit of 0.01 milligrams per kilogram but applies differing analytical screening methods for individual amine species.

The following table presents analytical specific migration limits and limits of quantitation for critical migrants across key regulatory jurisdictions:

Substance limits depend on rigorous surface-to-volume calculations. Evaluating a caprolactam specific migration result of twelve milligrams per kilogram requires confirming the contact ratio applied during testing. Under European standard assumptions of six square decimeters per kilogram, a migration yield of two milligrams per square decimeter calculates as twelve milligrams per kilogram, passing the fifteen milligram per kilogram limit.

Evaluating that identical plaque yield of two milligrams per square decimeter under a small packaging geometry exhibiting twenty square decimeters per kilogram converts the calculated migration to forty milligrams per kilogram. That value exceeds the fifteen milligram per kilogram legal limit by more than two hundred and sixty percent, triggering a compliance failure.

Analyzing specific migration data across multi-jurisdictional supply contracts ensures conversion calculations reflect worst-case end-use geometries. Converting raw chromatographic peak areas into legal compliance values requires verifying the instrument calibration range, internal standard recovery percentages, and exact simulant density figures applied by the testing laboratory.

Passing US FDA chloroform-soluble extractives tests does not guarantee compliance under European Union specific migration regulations.

Dossier

Compliance documentation bridges laboratory analytical results and legal market authorization. A valid Declaration of Compliance (DoC) serves as the primary legal instrument demonstrating that a plastic material satisfies applicable food contact regulations across international borders. Supporting technical dossiers must remain available to regulatory enforcement authorities upon request, containing complete laboratory test reports, raw analytical data, mass balance calculations, and toxicological evaluations.

Article 15 and Annex IV of Commission Regulation EU 10/2011 define mandatory structural elements for a compliant Declaration of Compliance. The document must state the identity of the issuing entity, the identity of the manufacturer or importer, the identity of the plastic material or intermediate component, the date of declaration, confirmation that the material complies with Regulation EC 1935/2004 and Regulation EU 10/2011, information regarding restricted substances, information regarding dual-use additives, and explicit end-use restrictions such as contact temperature, contact duration, and compatible food types.

Documentation failures represent the leading cause of regulatory border rejections and administrative fines in cross-border plastics sourcing. Importers often hold declarations that reference raw resin datasheets rather than finished converted article testing. A resin supplier DoC covers only the base polymer, leaving additives introduced during compounding, masterbatch pigments, slip agents, cross-linking catalyst residues, and functional barrier breakdown completely unaddressed.

Declaration of Compliance Verification Chains

Upstream resin producers pass chemical identity files down the converter chain to verify that intermediate masterbatches and additives remain within legal limits. Traceability requires each participant in the supply chain to maintain a continuous record linking specific resin batches to corresponding compliance declarations and analytical reports.

Gaps in the documentation chain occur when converters alter processing parameters or introduce unvetted additives without updating downstream declarations. Introducing a secondary slip agent or colorant masterbatch at the extrusion stage invalidates the resin producer’s original specific migration testing file. The final converter holds legal responsibility for demonstrating that the finished multi-component article satisfies all applicable specific migration limits.

Consistency across production lots remains a common point of audit failure.

Strict verification protocols apply to supplier declarations of compliance. Evaluating a supplier dossier requires matching the batch numbers listed on shipping bill-of-lading documents against the lot numbers identified in supporting laboratory analytical reports. A test report dated three years prior using obsolete test methods fails to support current production lots.

Non-Intentionally Added Substances Screening and Limits

High-resolution mass spectrometry coupled with liquid and gas chromatography identifies unexpected degradation products, side reaction compounds, and impurity traces. Non-Intentionally Added Substances (NIAS) include additive breakdown products, thermal degradation fragments, oligomeric species, reaction side-products, and recycled post-consumer contaminants. Article 19 of Regulation EU 10/2011 requires producers to assess NIAS safety using recognized risk assessment methodologies.

Screening for NIAS utilizes non-target analytical workflows. Gas Chromatography Mass Spectrometry (GC-MS) with electron ionization screens for volatile and semi-volatile migrants, while Liquid Chromatography Quadrupole Time-of-Flight Mass Spectrometry (LC-QTOF-MS) identifies polar, non-volatile species. Analytical limits of quantitation for unknown NIAS species default to an exposure threshold of 0.01 milligrams per kilogram of food (10 ppb), derived from the Threshold of Toxicological Concern (TTC) concept for non-genotoxic substances.

The document checklist below details essential documentation required inside a complete food contact compliance dossier for international cross-border clearance:

• Finished Article Declaration of Compliance issued by the legal entity placing the final product on the target market, stating clear contact time, temperature, and food type limitations.
• Substance Verification Traceability Matrix mapping every chemical additive CAS number against positive list authorizations, specific migration limits, and dual-use food additive classification codes.
• ISO 17025 Accredited Laboratory Test Reports containing complete raw chromatographic data, calibration curves, blank solvent runs, recovery ratios, and exact simulant exposure parameters.
• NIAS Toxicological Risk Assessment Document evaluating unknown chromatographic peaks above ten parts per billion using structure-activity relationship models or threshold of toxicological concern frameworks.
• Functional Barrier Efficacy Studies proving that internal layer structural barrier materials prevent migrant diffusion from unvetted core layers into food simulants.

Assessing functional barriers requires verifying that non-authorized substances placed behind the barrier do not migrate into food at detectable levels. European regulations permit the use of non-authorized substances behind a functional barrier provided the substances are not carcinogenic, mutagenic, or toxic to reproduction, and their migration remains below 0.01 milligrams per kilogram. Verifying functional barrier performance requires physical migration testing under worst-case thermal and solvent contact conditions.

Higher contact temperatures accelerate chemical diffusion without altering the underlying migration mechanism.

Contractual specifications requiring full disclosure of dual-use additives and functional barrier verification shifts liability for undisclosed migrant failure directly onto the resin compounder.

Freight

Physical shipment of packaging goods across international boundaries brings regulatory compliance files into contact with port enforcement authorities. Customs officials and national food safety inspectors target imported plastic materials through random sampling programs, risk-based targeting matrices, and automated customs data filtering systems. Border inspections evaluate both physical cargo samples and accompanying documentation files.

European border controls operate under the Rapid Alert System for Food and Feed (RASFF), which logs non-compliant imported articles and broadcasts immediate enforcement alerts across all member states. Plastic items seized for high primary aromatic amine release, heavy metal leaching, or excessive overall migration trigger automated customs flags for subsequent shipments from the identical manufacturer, increasing sampling rates to one hundred percent across all entry ports.

Failed checks block customs entry immediately.

United States Customs and Border Protection (CBP), working with the FDA under Import Alerts, places non-compliant foreign packaging suppliers on Detention Without Physical Examination (DWPE) lists. Once placed on DWPE status, subsequent shipments remain held at the port of entry at the importer’s expense until independent ISO 17025 accredited laboratory testing proves conformity for each individual import lot.

Port Enforcement Mechanisms and Batch Sampling Rates

Customs inspectors target high-risk plastic imports using rapid screening methods followed by accredited laboratory confirmatory testing. Portable X-ray Fluorescence (XRF) analyzers allow port inspectors to screen plastic items instantly for restricted heavy metals including lead, cadmium, mercury, and chromium, as well as brominated flame retardants. Detecting heavy metals above regulated thresholds results in immediate cargo hold orders and official laboratory sampling.

Sampling frequency at port entries depends on the historical compliance record of the exporting country, the specific polymer type, and the declared end-use application. Unfinished polymer masterbatches and raw resin granules experience lower physical sampling rates compared to finished, highly processed consumer items like black nylon kitchen utensils, melamine tableware, and printed flexible film pouches.

Enforcement evaluations rely primarily on third-exposure data points.

Laboratory testing schedules for detained freight create substantial demurrage costs. Standard migration testing protocols involving ten-day liquid contact schedules, coupled with analytical sample preparation and chromatographic reporting, require three to four weeks to complete. Holding sea containers inside port terminal facilities during a four-week testing window accumulates port storage fees, container demurrage charges, and chassis rental costs that frequently exceed the raw commercial value of the imported plastic cargo.

Commercial Risk Allocation and Acceptance Protocols

Purchase agreements for cross-border polymer components account for testing lead times, quarantine holding costs, and lot rejection procedures. Commercial procurement contracts shift compliance liability upstream by requiring resin suppliers and converters to provide certified lot-specific migration test reports prior to vessel departure.

The risk matrix table below outlines commercial testing frequencies, acceptance criteria, and financial risk allocations across standard sourcing tiers:

Incorporating pre-shipment testing requirements into international purchase contracts protects importers from port detention losses. A robust supply contract mandates that final payment releases only upon physical arrival, customs clearance, and successful verification of the supporting compliance dossier. Requiring foreign suppliers to post performance bonds or maintain product liability insurance covering regulatory withdrawal costs provides commercial recourse when latent chemical non-conformities trigger market recalls post-entry.

Cost constraints often push suppliers to take shortcuts on compliance testing.

Managing landed costs across cross-border polymer supply chains requires integrating testing expenses directly into initial product sourcing calculations. Laboratory testing budgets spanning complete European EU 10/2011 screening packages ~ including overall migration in three simulants, specific migration of heavy metals, primary aromatic amines, and non-target NIAS screening ~ range from four thousand to eight thousand Euros per product line. Allocating these analytical expenses across total production volume prevents margin erosion while ensuring strict adherence to international regulatory safety standards.
