Extensional Viscosity and Transient Crystallization Dynamics in High-Speed Recycled Polyolefin Injection Moulding

Gate

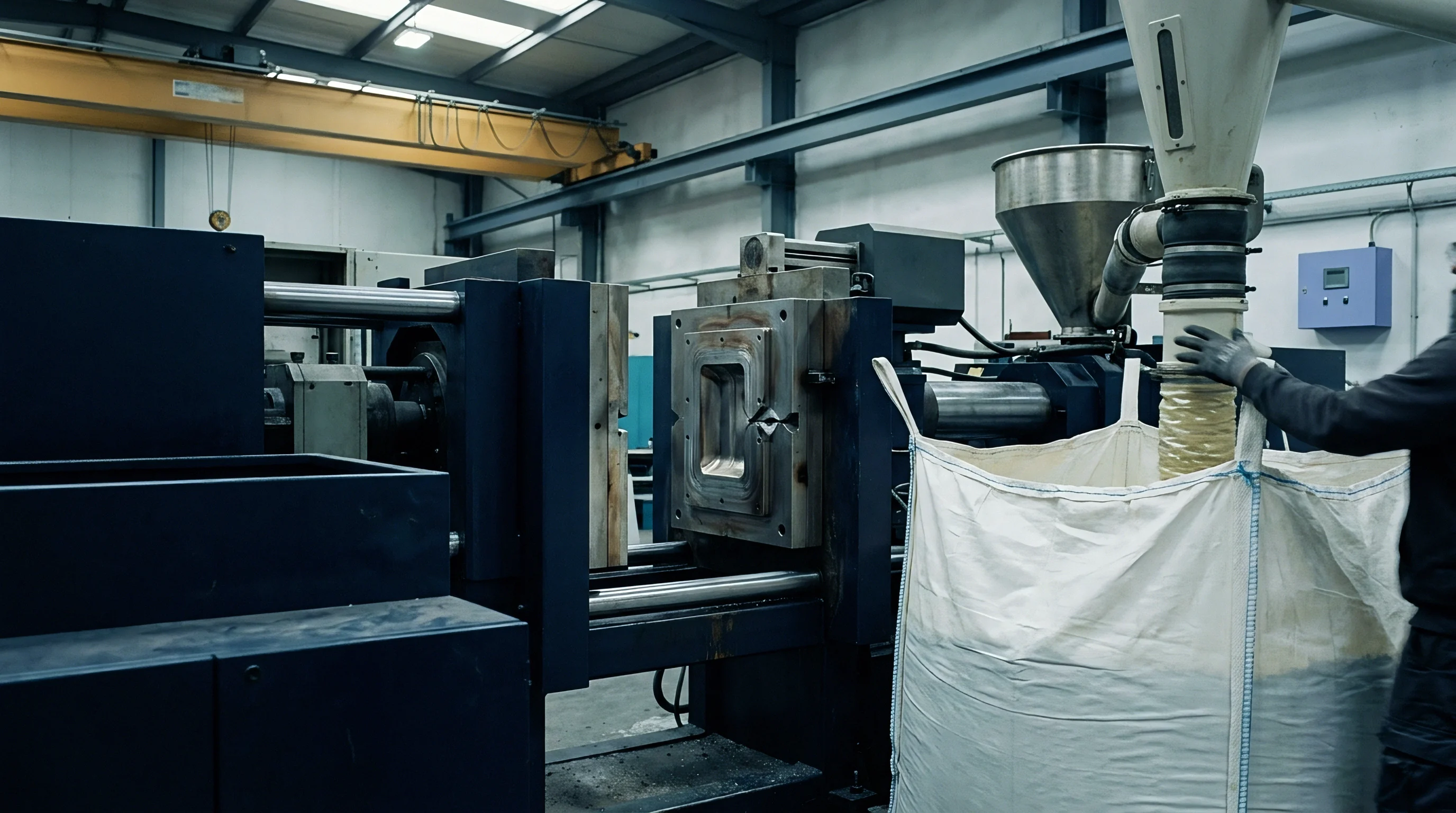

High-speed thin-wall packaging injection moulding forces polymer melt through narrow mold restrictors at shear rates exceeding 15,000 reciprocal seconds. Gate shear rates exceed 15,000 reciprocal seconds. Melt fracture ruins thin-wall packaging parts.

The severe convergence from the cold runner into the thin cavity channel creates a dominant uniaxial and planar extensional stress field at the entry orifice. Polyolefin recyclates sourced from post-consumer rigid packaging streams contain complex mixtures of high-density polyethylene, linear low-density polyethylene contaminants, and residual high-molecular-weight polypropylene fractions. Standard shear flow characterizations fail to capture the resistance these molecules exert when stretched rapidly during entry flow.

Melt flow rate measurements performed according to ISO 1133 under standard loads of 2.16 kg at 230 °C evaluate purely steady-state shear flow at low shear rates. These single-point figures miss the transient elongational response of polymer chains passing through restrictor geometries. High-molecular-weight tails present in recycled polypropylene streams generate high Trouton ratios, defined as the ratio of extensional viscosity to shear viscosity.

Recycled resin properties shift across shipments. Shear viscosity tests miss elongational behavior. When the Trouton ratio rises above the baseline value of 3 expected for Newtonian fluids, approaching values between 20 and 50 in degraded polyolefin blends, extreme entrance pressure drops occur at the runner junction.

Calculating the entrance pressure drop across an entry boundary relies on the Cogswell analytical model, which separates shear work from extensional work. High extensional viscosity increases pressure losses before the melt enters the mold cavity, restricting the available pressure for mold packing. Organics lower heat deflection temperature.

Polyethylene contamination alters extensional strain hardening. Linear low-density polyethylene cross-contamination within recycled polypropylene compounds alters the interfacial tension and induces strain-hardening behavior during high-speed flow stretching.

High extensional stress fields at narrow entrances induce distinct flow defects during ultra-fast injection cycles:

• Gate Blush Manifestation localized surface dullness caused by high extensional stress uncoiling high-molecular-weight polymer chains during entry, causing severe phase separation near the entry point.
• Sinking and Voids excessive pressure consumption at the restriction reducing available cavity packing pressure before the narrow section freezes.
• Melt Fracture at Runner Transitions unstable extensional strain hardening triggering melt flow instabilities that propagate into the cavity as visible jetting marks.
• Premature Freezing extreme pressure loss reducing volumetric flow velocity, allowing the advancing melt front to freeze prior to complete cavity filling.

Unresolved remains whether low-level elastomeric impact modifier additions can effectively dampen strain-hardening behavior in contaminated post-consumer polypropylene without destabilizing the phase boundary under high strain rates.

Structure

Transient flow-induced crystallization in rapid cavity filling proceeds along kinetic pathways that bypass traditional quiescent solidification models entirely. Moulding speed dictates local crystallization rates. Ultra-fast injection speeds with fill times under 0.35 seconds subject the polymer melt to severe deformation rates immediately before thermal quenching against cold steel walls.

High shear and extensional deformation fields stretch high-molecular-weight polyolefin chains, aligning them parallel to the flow vector. This oriented state reduces the free energy barrier for crystal primary nucleation, increasing the nucleation density by several orders of magnitude.

Polypropylene crystallizing under an elongational strain rate of 80 reciprocal seconds reaches half-crystallization time in 0.012 seconds at 135 °C.

Rapid nucleation under flow yields an anisotropic skin-core crystalline morphology across thin-wall part cross-sections. Oriented high-molecular-weight chains form fibrillar precursor nuclei, leading to the formation of shish-kebab structures in the outer shear layer. In post-consumer polyolefin recyclates, inorganic particulate contaminants such as talc, titanium dioxide, and calcium carbonate remnants serve as additional heterogeneous nucleation sites.

Impurities act as primary crystalline nuclei. These residual solids interact with flow orientation fields, raising the peak crystallization temperature during high-speed cooling.

Accelerated crystallization kinetics in the skin layer alter the thickness ratio between the highly oriented outer skin and the isotropic spherulitic core. Skin layer thickness dictates part rigidity. A thick skin layer formed during cavity filling reduces the effective hydraulic diameter of the molten core during the packing phase.

In multi-cavity packaging tools, slight batch-to-batch shifts in recycled polyolefin crystallization kinetics result in inconsistent part weights and localized thermal stress risers.

Higher concentration of ultra-high molecular weight chain tails accelerates skin orientation, forming a rigid outer shell before cavity packing pressure stabilizes.

Refinement

Post-consumer polyolefin streams require melt-state processing adjustments during compounding to restore balance between shear flowability and extensional resistance. Peroxide treatment reduces high molecular weight tails. Controlled rheology through peroxide-induced visbreaking selectively cleaves long polymer chains in polypropylene, narrowing the molecular weight distribution.

Dosing dialkyl peroxides such as 2,5-dimethyl-2,5-di(tert-butylperoxy)hexane into a twin-screw extruder reduces high-rate extensional viscosity while elevating the overall melt flow rate.

Chemical modification of recycled polyolefins must account for cross-contamination chemistry. Peroxides that degrade polypropylene via chain scission cause cross-linking in polyethylene contaminants. Cross-linked gels create immediate stress risers.

When post-consumer polypropylene contains more than 3% high-density or linear low-density polyethylene, peroxide addition forms gel structures that elevate high-strain extensional viscosity, exacerbating gate defects.

Evaluating recycled polyolefin compounds for high-speed injection moulding requires specific incoming resin checks:

• Molecular Weight Distribution Profiling tracking the ratio of weight-average to number-average molecular weight via high-temperature gel permeation chromatography to ensure narrow distribution bounds.
• Thermal Oxidative Stabilizer Verification measuring oxidation induction time according to ISO 11357-6 at 200 °C to confirm sufficient active hindered phenol antioxidants remain after compounding.
• Continuous Melt Screen Rating verifying that melt filtration during pelletization used screen meshes finer than 50 microns to remove inorganic primary nucleation sites.
• Contaminant Phase Compatibilization evaluating the concentration of ethylene-propylene block copolymers added to suppress phase separation between polyethylene inclusions and the polypropylene matrix.

Inadequate removal of high-extensional-viscosity gel fractions results in localized stress risers, causing premature catastrophic cracking under low-temperature drop-impact conditions.

Distortion

Variable skin-core ratios throughout thin-wall molded components create localized density gradients and severe residual stress distributions. Asymmetric flow orientation between the cavity surfaces and the central flow channel produces non-uniform volumetric thermal shrinkage upon cooling. High-speed injection moulding of recycled polyolefins amplifies this imbalance due to erratic transient crystallization behavior across the part cross-section.

Extensional orientation in the sprue region drives asymmetric thermal contraction across thin-wall container rims.

Anisotropy in linear thermal expansion coefficients causes post-moulding warpage and rim deformation in packaging containers. Molecular chains oriented along the primary flow direction exhibit minimal thermal shrinkage along the flow axis, whereas isotropic core regions shrink uniformly in all directions. In circular container geometries, localized variations in extensional strain rate around the gate restrictor lead to non-axisymmetric orientation fields, turning circular rims into oval profiles within 24 hours of ejection.

Material suppliers often attribute part warpage to improper tool cooling channel placement rather than addressing the erratic elongational strain hardening caused by unblended post-consumer resin lots.

Bench

Characterizing extensional viscosity and rapid crystallization dynamics requires analytical techniques beyond standard low-shear capillary rheometry or slow-rate thermal analysis. Standard MFR measurements miss extensional effects. Orifice dies measure entrance pressure drop.

Capillary rheometers fitted with zero-length entry dies isolate entrance pressure drop from wall shear friction, allowing direct calculation of extensional viscosity curves across strain rates from 10 to 1,000 reciprocal seconds. Fast-scanning calorimetry provides thermal analysis at cooling rates reaching 4,000 K/s, matching the thermal quenching conditions experienced by resin contacting chilled mould steel.

Does Capillary Entrance Pressure Predict Gate Blush Rate?

Entrance pressure drop measurements derived from dual-bore capillary rheometry show a strong direct correlation with gate blush occurrence in thin-wall injection moulding tools. When the Cogswell entrance pressure drop exceeds 3.5 MPa at an extensional strain rate of 100 reciprocal seconds, high-speed polyolefin melts undergo extreme elastic deformation at entry. The stored elastic strain energy releases as the fluid exits the restrictor, causing surface phase separation and visual dullness near the entry point.

Compliance with ISO 11443 method B for entrance pressure measurement guarantees early identification of melt-fracture tendencies in recycled packaging compounds.

Measuring extensional properties and flow-induced crystallization kinetics on incoming recycled polyolefin lots follows a structured lab sequence:

1. Heat the capillary rheometer barrel to 230 °C and load the recycled polyolefin sample, allowing a six-minute thermal equilibration period to melt all crystalline phases.
2. Drive the melt through a long capillary die with a length-to-diameter ratio of 30 at wall shear rates ranging from 500 to 20,000 reciprocal seconds to construct the shear viscosity baseline.
3. Extrude the same melt lot through an orifice die featuring a length-to-diameter ratio of 0.25 under identical piston speeds to record the total entrance pressure loss.
4. Subtract the wall shear pressure component from the total orifice pressure drop to calculate the net Cogswell entrance pressure drop across all tested shear rates.
5. Mount a film sample onto a Fast-Scanning Calorimeter chip sensor, heat to 220 °C at 100 K/s, hold for one second, and cool at 2,000 K/s to quantify the onset temperature of flow-free rapid crystallization.

Specifying maximum allowable entrance pressure drop limits under ASTM D3835 within purchasing specifications prevents high-speed moulders from accepting resin lots that trigger flow mark defect spikes.

Freight

Sourcing post-consumer recycled polyolefins for high-speed injection moulding applications shifts the commercial risk profile directly onto feedstock batch consistency. Cycle scrap wipes out pellet savings. Unintended variations in extensional viscosity alter cavity packing pressures, triggering part weight fluctuations and visual surface defects.

While recycled resins carry a price discount relative to virgin polymers, high scrap rates during packaging production runs eliminate material cost savings.

Financial performance in high-volume thin-wall moulding depends on cycle time precision and low rejection rates. A cycle time increase of 0.2 seconds caused by slow core freezing in thick skin layers increases machine operating costs per unit. Material specifications must incorporate extensional viscosity parameters alongside traditional melt flow index criteria to protect production economics.

A pellet price discount of two hundred euros per tonne disappears when gate blush elevates cycle scrap rates past two percent.

Contracts for recycled polyolefins specified for high-speed moulding applications must define precise technical boundaries:

• Capillary Entrance Pressure Bounds setting maximum allowed Cogswell entrance pressure drop limits at specified extensional strain rates under ISO 11443.
• Polyethylene Cross-Contamination Ceilings capping total ethylene polymer content below 2.5% mass fraction using differential scanning calorimetry enthalpy integration.
• Peroxide Residue Threshold Limits establishing maximum permitted active peroxide residue levels to prevent continuous active degradation during re-melting.
• Lot-to-Lot MFR Variance Windows restricting acceptable melt flow rate deviations to within plus or minus 8% of the target specification value across shipments.

Compounders that incorporate inline extensional viscosity monitoring and automated peroxide dosing control maintain tight property windows across variable feedstock lots. Moulding operations operating at 3-second cycle times maintain stable cavity packing without suffering from shear-induced surface defects or post-moulding rim warpage.
