Cross Border Tooling Asset Verification and Customs Assist Declaration Basics

Foreign tooling assets used for production abroad demand accurate assist value declaration on part entry and permanent steel ownership plates on the mold.

22.09.26 11 min

Crate

Port inspectors mandate physical examination of imported injection molds prior to customs release. Overseas toolmakers typically ship multi-cavity hardened steel tooling in reinforced plywood crates, where moisture barriers and physical asset identifiers decide whether entry processing stalls or proceeds.

A clear polymer container assembly connects to a metallic test fixture positioned beneath an industrial press within a dark workshop.

Physical Tooling Identification at the Port

When a multi-ton injection mold arrives at a port of entry, border officials cross-reference the bill of lading with physical markings on the tool frame. Stainless steel asset plates, riveted directly into the non-moulding surface of the B-side clamp plate, confirm proprietary ownership and legal country of origin.

Without adequate barrier grease, P20 and H13 core and cavity inserts oxidize quickly on open ocean crossings. Exporters coat exposed core pins, slide assemblies, and hot runner manifolds in high-viscosity vapor-phase corrosion inhibitors before sealing the assembly inside heavy-gauge polyethylene foil vacuum packaging. A single breach in that barrier allows saltwater humidity to pit polished A2 lens surface finishes, ruining cavity tolerances under DIN 16742 Grade 160 before the tool reaches a press-side setter.

A robotic coordinate measuring arm in this render inspects a machined steel bed of an industrial injection moulding tool assembly.

Steel Asset Plates and Shot Counter Rigidity

Toolmakers weld engraved 304 stainless steel tags onto mold bases before shipment. These identification plates specify the buyer legal entity name, tooling asset registration number, total dry mold weight, cavity count, and primary resin shrinkage rate. Non-resettable mechanical shot counters embedded in the mold frame supply objective physical proof of historical production volume during customs investigations.

Inspectors match the physical shot count against historic component invoice volumes to verify whether an imported mold represents new, unused capital equipment or an active, depreciated asset returning from overseas production. Electronic counters with external inductive sensors provide digital logging, but customs authorities prefer tamper-proof mechanical cycle counters recessed below the parting line surface.

  • Missing Asset Nameplates create immediate structural holds at entry ports, forcing expensive warehouse demurrage until a certified surveyor verifies physical steel ownership.
  • Unsealed Vapor Barriers expose polished P20 cores to maritime moisture, generating flash rust that destroys micro-grained surface finishes within two days of salt air exposure.
  • Unregistered Cavity Alterations executed in foreign shops invalidate initial customs declarations, exposing the importer of record to retroactive tariff reassessments.
  • Uncalibrated Mechanical Counters display incorrect cycle totals, prompting regulatory audits into unreported component volume runs abroad.

Failing to verify physical nameplates and protective shipping enclosures prior to dispatch leads to seized freight, damaged core surfaces, and port demurrage penalties that quickly exceed ocean transit freight fees.

Assist

Customs valuation rules treat buyer-provided production equipment as a direct component of imported product pricing. When an importer supplies an overseas manufacturer with tooling, dies, molds, or specialized engineering services without charge or at a reduced cost, international customs agreements classify that contribution as a customs assist under transaction value regulations.

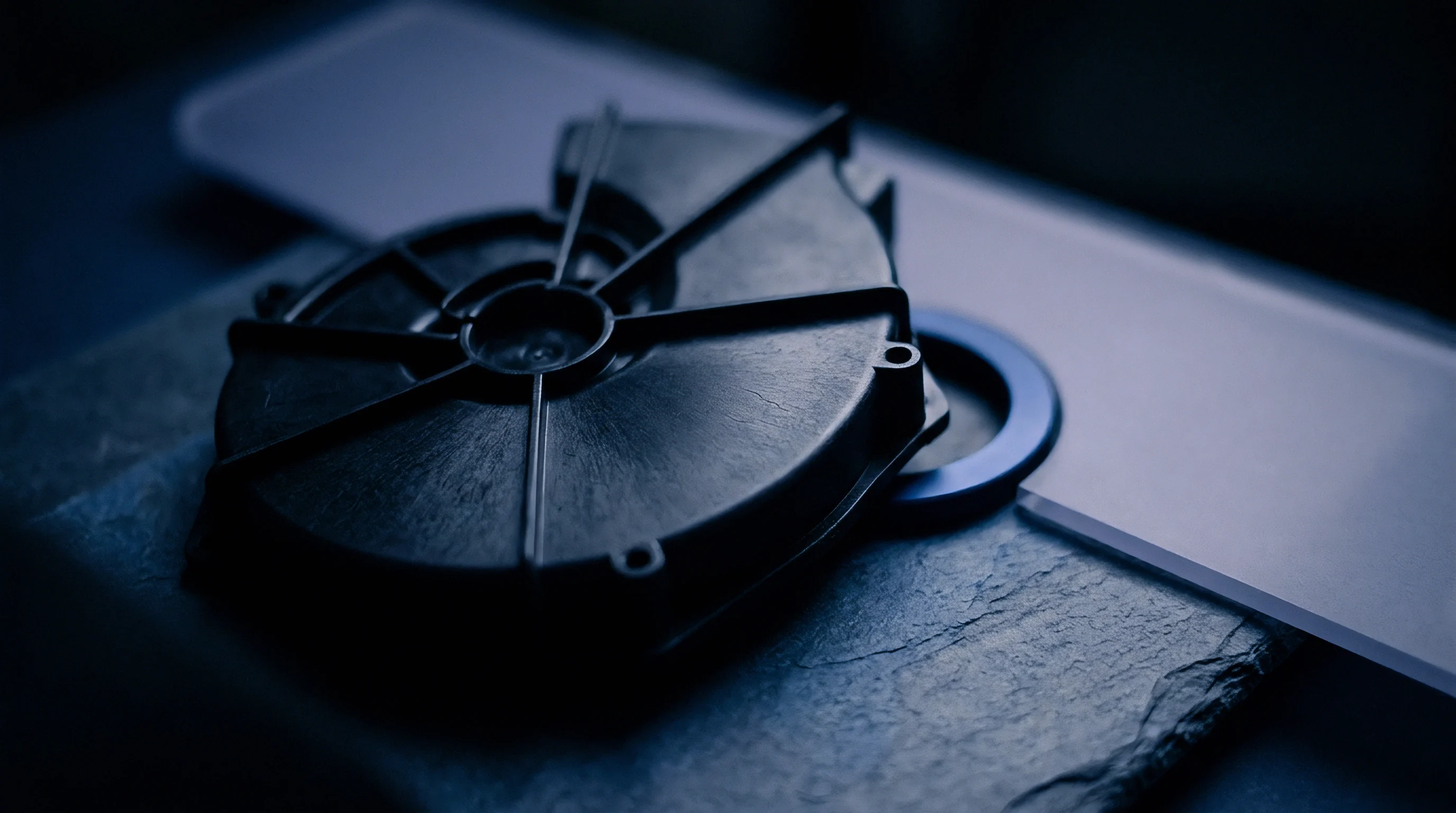

Injection molded thermoplastic impeller housing rests on a slate substrate adjacent to a blue sealing gasket and clear polycarbonate sheet.

Statutory Definitions under Customs Valuation Codes

Title 19 of the United States Code section 152.103 defines seller production inputs financed by overseas buyers. Molds, dies, tools, and printing blocks furnished directly or indirectly by the buyer for use in producing imported merchandise fall under mandatory declaration guidelines.

The total assist value includes the full creation cost of the tool, plus freight, insurance, and export clearance expenses incurred to land the steel at the foreign moulder factory. If an importer purchases a $120,000 sixteen-cavity hot runner tool from an independent German toolroom and ships it to a foreign processor, the declared assist base equals $120,000 plus transit fees. When the buyer manufactures the tool internally, the assist value reflects production expenses drawn from financial accounting ledgers rather than external retail pricing quotes.

Submarining title clauses that attempt to withhold assist registration until final component acceptance force customs authorities to reclassify the tooling as a seller-owned asset subject to full ad valorem valuation upon entry.
Precision molded polymer fixtures connect a sealed glass ampoule to a metallic extrusion nozzle across a stainless steel industrial test bench.

Engineering and Design Assist Classifications

Drafting costs incurred outside the destination country add directly to declared transaction bases. Computer-aided design work, mold flow analyses, and electrode drafting conducted in the destination country by local personnel do not constitute customs assists under World Trade Organization rules.

If a product designer in Germany executes CAD file modifications for a mold built and run in another overseas territory, those development costs constitute an international design assist. Importers must trace the geographical origin of engineering labor, because separating domestic engineering hours from foreign software development establishes the precise monetary baseline for component ad valorem customs declarations.

The contract buyer tools supply clause establishes that all buyer-owned molds, core inserts, and specialized fixtures located abroad remain customs assists whose amortized value adds directly to component transaction prices upon import.

Arithmetic

Financial apportionment of tooling additions demands systematic accounting across total production runs. Importers elect to declare the full monetary value of a foreign tool on the initial production batch or amortize that cost over expected component delivery quantities.

Precision machined aluminum tooling components and textured steel mold inserts rest on a textured stone surface during industrial manufacturing setup.

Why Do Customs Audits Target Apportionment Spans?

Importers frequently select extended production forecasts to dilute duty payments across initial component shipments. Selecting a short, aggressive amortization run pays the mandatory tariffs quickly, eliminating long-term tax exposure if the product line dies early.

Selecting an unrealistically long apportionment span of one million units for a tool rated for a two-hundred-thousand-shot life cycle prompts customs penalties. When a tool collapses before achieving the declared component volume, the importer retains unpaid customs duty on the remaining, unamortized asset base, leaving mold invoices exposed during audit reviews.

A 4140 steel mold base subjected to cross-border transit without vapor-phase corrosion inhibitors incurs surface oxidation within forty-eight hours of ocean freight exposure.
An operator in a workshop examines polymer injection moulded components and steel insert tools arranged on a dark metal workbench.

Scrap Rate Amortization in Assist Duty Calculation

Production waste consumes a distinct fraction of total resin pulled through the cavities. Cold runner sprues, purge resin, and rejected start-up mouldings absorb a percentage of the allocated tooling value without yielding shippable parts.

Calculations for assist apportionment must account for anticipated scrap factors experienced during press bring-up and steady-state runs. If a two-cavity tool producing polybutylene terephthalate auto connectors experiences a five percent scrap rate, the total assist value divides across ninety-five percent of the theoretical yield, raising the per-unit duty contribution.

Tooling Assist Apportionment Schedules and Ad Valorem Duty Impact for a $100,000 Foreign Injection Mold
Apportionment Volume (Units) Base Assist Duty Add per Part ($) 5% Scrap Adjusted Assist Base ($) Part Unit Price ($) Ad Valorem Duty Impact at 3.1% ($)
10,000 10.0000 10.5263 2.50 0.4038
50,000 2.0000 2.1053 2.50 0.1428
100,000 1.0000 1.0526 2.50 0.1101
500,000 0.2000 0.2105 2.50 0.0840
  1. Calculate total initial tooling acquisition expense including engineering charges, toolroom modifications, and international transport fees to the processing plant.
  2. Determine expected total production volume based on firm purchase orders or validated tool life expectations verified by press setters.
  3. Divide total combined assist expenditure by expected net yield volume to establish the unit valuation addition for entry documentation.
  4. Apply local customs tariff percentage rates to the combined part base transaction price and calculated assist addition per unit.

Tooling amortization choices made at initial component entry remain fixed across the entire life of the underlying asset.

Ledger

Corporate financial balance sheets track overseas production equipment with exact physical locations and depreciation states. Accounting books must reflect real-world physical locations, tool modifications, and current tooling condition to survive internal corporate audits and tax inspections.

Metallic industrial fittings and polymer lined bushings rest on a factory floor alongside a digital caliper during dimensional verification.

Cross Border Balance Sheet Registration

When a corporate buyer funds tooling construction abroad, it retains title documents while recording the asset in corporate balance sheets under machinery and equipment. Fixed asset registers track physical mold movement between primary processors and sub-contractors.

Discrepancies between fixed asset location logs and physical factory floor audits invite tax authority scrutiny. Importers maintain detailed cross-border asset ledgers that link specific tool serial numbers, physical press locations, customs entry numbers, and capitalized depreciation schedules into a single traceable register.

Tooling modifications performed within the host country that alter cavitation or runner geometry permanently modify the assist baseline value for all subsequent production lots.
A technician in protective gloves uses a handheld measuring instrument to inspect a small polymer component taken from an injection moulding runner assembly.

Maintenance Logs and Cavity Modification Tracking

Tooling refurbishments performed in foreign mold shops alter initial asset valuation schedules. Converting a two-cavity prototype tool into a four-cavity production asset via electrical discharge machining wire cuts increases the capital value of the assist.

Routine repairs like replacing worn ejector pins or recutting damaged gate lands represent operating expenses rather than assist additions. Major structural modifications that extend tool life, change wall thickness sections, or increase shot size represent capitalized assist additions that demand supplementary customs declarations.

Minor core rework and polished gate repairs are frequently characterized as routine shop overhead, though customs and tax rules classify major structural changes as adjustments requiring fixed asset register updates.

Dispute

Customs regulatory enforcement agencies investigate omitted tooling expenses through multi-year transactional reviews. Penalty exposure under national import legislation scales sharply based on the identified degree of culpability, ranging from simple clerical oversight to deliberate fraud.

A tiered white polymer nozzle component attaches to an orange vertical panel within a geometric arrangement of blue and dark industrial surfaces.

Customs Penalties under Section 1592

In the United States, 19 U.S.C. 1592 authorizes customs authorities to collect civil penalties for false statements or omitted tooling and freight costs, reviewing transactions across a five-year audit window.

Negligence penalties reach two times the total duty loss or twenty percent of the domestic value of the merchandise. Gross negligence claims double those figures. Cases involving fraudulent assist omission expose corporate managers to monetary fines equal to the total domestic value of the imported goods, alongside potential criminal proceedings.

19 U.S.C. 1592 Culpability Levels and Penalty Exposure for Undeclared Tooling Assists
Culpability Level Legal Definition Baseline Maximum Monetary Penalty (Commercial) Impact on Prior Disclosure Rights
Negligence Failure to exercise reasonable care in preparing assist entry filings. Lesser of total domestic value or 2x duty loss. Reduces penalty to interest accrued on unpaid duty.
Gross Negligence Acts done with willful disregard or extreme indifference to statutory duties. Lesser of total domestic value or 4x duty loss. Reduces penalty to 100% of unpaid duty loss.
Fraud Voluntary and intentional omission to deceive revenue collection agencies. Up to 100% of total domestic value of merchandise. Prior disclosure protection denied if investigation is active.
Customs inspectors inspect the physical tool surface for cast steel asset tags whenever declared component prices drop significantly below regional resin baseline costs.
A hand holds a beige multipart polymer prototype featuring slotted tabs over organized rows of stacked industrial plates in a storage rack.

Audit Defense Packages and Verification Dossiers

When customs investigators challenge an importer’s component pricing, the buyer must produce a comprehensive audit defense package within designated statutory response windows.

This verification dossier contains original toolmaking purchase orders, wire transfer payment receipts, international shipping manifests, engineering modification invoices, and historical part unit entry declarations. Lacking clear links between physical shot counter logs and customs assist filings leaves the importer defenseless against systemic tax adjustment assessments.

  • Toolroom Invoices and Wire Receipts verifying original procurement, machining, and heat treatment expenditures across all mold components.
  • Logistics Bills of Lading establishing the freight, port handling, and insurance expenses paid to transport the tool overseas.
  • Engineering Work Orders identifying CAD design geographical sources and differentiating foreign engineering assists from domestic development expenses.
  • Press Production Run Summaries linking recorded mechanical shot counter figures directly to specific entry summary documents.

Whether customs enforcement authorities consider non-recurring engineering charges paid to foreign toolmakers as part of component transaction value or as separate non-dutiable services remains an active legal dispute across several jurisdictions.

Transfer

Moving hardened steel injection molds between international manufacturing sites demands specific customs bond mechanisms. Moulders shifting production between low-cost regions use temporary import structures to avoid paying redundant tariffs on tools moving between active facilities.

Precision metallic mold tooling and polymer caps rest on a dark gridded surface prepared for manufacturing prototyping or quality control inspection.

Temporary Importation under Bond Frameworks

Importers moving tools into foreign territories for short production runs utilize Temporary Importation under Bond provisions or international ATA Carnet passports.

A Temporary Importation under Bond filing allows a multi-cavity tool to enter a host country duty-free, provided the asset departs within a specified statutory timeframe, typically one to three years. The importer posts a financial indemnity bond equal to double the standard ad valorem duty rate. If the tool fails to exit the country before bond expiration, the customs authority forfeits the bond amount automatically.

Comparison of Cross-Border Tooling Relocation Customs Mechanisms
Mechanism Maximum Stay Duration Financial Security Requirement Best Suited Operational Use Case
Temporary Importation under Bond 1 to 3 Years Maximum Double the ad valorem duty liability amount. Medium-term overseas component manufacturing contracts.
ATA Carnet Passport 12 Months Fixed Carnet bond or cash guarantee held by chamber. Tooling trials, press bring-up, and trade exhibitions.
Duty Drawback System 3 to 5 Years Window Standard duties paid upfront, refunded on exit. Permanent tool relocation across global factory networks.
Permanent Consumption Entry Indefinite Stay Full ad valorem tariff paid upon initial entry. Permanent long-term high-volume component production.
Three rectangular polymer plaques in navy, cream and dark grey are tied with a textile cord atop a dark workbench within a factory.

Duty Drawback Mechanisms for Cross Border Tooling Relocation

When an importer pays full ad valorem duties on an imported tool and subsequently exports that tool to another foreign plant, duty drawback regulations permit a refund of up to ninety-nine percent of the initial tariffs paid.

Obtaining duty drawback refunds requires strict tracking of original customs entry summary documentation, proof of export via ocean bills of lading, and physical serial number verification conducted by border agents prior to re-shipment. Maintaining strict compliance across temporary admissions and asset re-export pathways secures the financial integrity of global tooling deployment networks.

Nomenclature

Scrap Factor

Meaning ~ Production metric quantifies the volume of material lost or rejected during a manufacturing cycle.

WCO Valuation Agreement

Meaning ~ Multilateral agreement establishes international standards for the appraisal of goods at the border.

Ad Valorem Duty

Meaning ~ Customs tariff structures impose import taxation calculated as a fixed percentage of the appraised commercial value of entered goods.

Tool Ownership Plate

Meaning ~ A tool ownership plate functions as a permanent stainless steel or brass identification marker riveted directly to an injection mold base to establish legal title and track asset location across multiple tier suppliers.

P20 Steel

Meaning ~ Chromium molybdenum alloyed tool steel represents a pre-hardened metal grade widely utilized for the production of injection mould cavities and bases where moderate hardness and consistent machinability remain the priority.

Customs Assist

Meaning ~ Regulatory supply chain data represents the valuation adjustment factor for polymer shipments that excludes non-dutiable engineering or development charges from the declared transaction value.

Split Shipment Declaration

Meaning ~ Customs documentation clarifies the segmented arrival of a single large order over multiple dates.

Cross Border Mold Transfer

Meaning ~ International logistics operations move industrial tooling across national borders for manufacturing purposes.

19 CFR 152 103

Meaning ~ Transactional valuation methodology establishes the legal basis for determining the customs value of imported goods by prioritizing the price paid or payable.

H13 Steel

Meaning ~ Chromium-molybdenum hot-work tool steels formulated under ASTM A681 provide high toughness and resistance to thermal fatigue cracking in high-volume injection tooling.

DIN 16742

Meaning ~ Thermoplastic moulded component tolerance specification DIN 16742 governs dimensional deviations across manufactured polymer parts.

Vapor Phase Inhibitor

Meaning ~ Chemical technology protects metallic surfaces from environmental degradation using a gas-phase barrier.
