Thermal Stability and Melt Processing Rules for Polyhydroxyalkanoate Resins

Pyrolysis

Polyhydroxyalkanoate polymers undergo thermal degradation primarily through a unimolecular cis-elimination mechanism. This random chain scission process operates through a six-membered cyclic transition state involving the ester carbonyl group and a beta-hydrogen atom. Polymer chains cleave rapidly.

The cleavage yields an alkenyl carboxylic acid and an ester-terminated oligomer, causing an immediate drop in molecular weight during melt processing. Thermal breakdown initiates at temperatures directly adjacent to the melting point of the resin, leaving an exceptionally narrow thermal processing window for un-modified homopolymers like poly(3-hydroxybutyrate).

The rate of molecular weight loss follows pseudo-first-order degradation kinetics. Activation energy values for this random scission process consistently fall within the range of 110 to 130 kilojoules per mole across aliphatic hydroxyalkanoate structures. Because ester pyrolysis depends fundamentally on temperature and duration, processing temperatures above 160 degrees Celsius cause exponential viscosity reduction within standard extrusion dwell times.

Chemical functionalization via co-monomers shifts these thermal boundaries by disrupting crystal packing and lowering the overall melting endotherm.

Co-polymerization with 3-hydroxyvalerate, 3-hydroxyhexanoate, or 4-hydroxybutyrate widens the gap between the melting peak temperature and the thermal decomposition onset temperature. P3HB homopolymer offers a narrow processing window of merely 7 degrees Celsius before rapid thermal decomposition commences. Introducing 10 mol percent 3-hydroxyhexanoate expands this operational margin to 60 degrees Celsius by suppressing the crystalline melting point without reducing the intrinsic thermal cleavage threshold of the ester backbone.

Thermal decomposition of P3HB homopolymer proceeds at a rate exceeding 1.2 percent mass loss per minute when held at 180 C in zero-oxygen environments.

Degradation products generated during melt exposure alter the chemical profile of the compound. Crotonic acid and its higher homologs arise from the systematic cleavage of the ester linkage. Heat accelerates this pathway.

These acidic reaction products act as autocatalytic agents, accelerating further chain scission if melt residence time extends inside the barrel. Processing polyhydroxyalkanoates above critical temperature limits causes severe melt strength collapse, part embrittlement, volatile gassing, and inconsistent cavity filling that renders molded parts unusable.

Kinetics

Solidification rate determines the viability of polyhydroxyalkanoate resins in high-throughput converting equipment. Nucleation density in neat resins remains inherently low, resulting in slow spherulitic growth and prolonged crystallization times. Glass transition values sitting near room temperature cause crystallization to proceed slowly between 50 and 90 degrees Celsius.

Un-nucleated melts remain tacky and mechanically soft upon exiting the die or opening the mold cavity, preventing immediate mechanical handling.

Secondary crystallization continues over days and weeks following part conversion. Small molecules and flexible amorphous segments rearrange into ordered lamellae, driving up overall density and volumetric shrinkage. Melt strength drops instantly.

This progressive microstructural shift generates structural rigidity alongside severe loss of impact strength, transforming flexible parts into brittle structures over storage time. Nucleating agents mitigate this shelf-life degradation by forcing smaller, dense spherulite morphologies that reach equilibrium crystallization during the primary mold cycle.

Nucleation density governs processing cycle duration far more effectively than barrel cooling adjustments.

The mechanical integrity of the solidifying melt relies on controlling phase transitions through targeted nucleating packages. Failure modes during cooling manifest across several distinct operational symptoms:

• Delayed mold release occurs when the polymer remains partially amorphous inside the mold cavity, causing ejector pin penetration and severe part deformation.
• Post-crystallization embrittlement arises from secondary spherulite growth that strains amorphous tie-molecules, lowering notched Izod impact energy below acceptable engineering thresholds.
• Melt strength collapse manifests during blown film or profile extrusion when slow melt crystallization prevents the formation of a stable bubble or profile shape.
• Surface bloom formation develops when low-molecular-weight oligomers and mobile additive fractions migrate to the exterior skin during slow solid-state ordering.

Crystallization velocity varies directly with shear history prior to mold entry or die exit. Shear-induced molecular alignment generates precursor nuclei that accelerate crystallization kinetics upon cooling. Excessive melt temperatures eliminate these flow-induced nucleation sites by fully relaxing polymer entanglements.

Isothermal crystallization time recorded at 80 degrees Celsius expands from 45 seconds under moderate shear prep to over 300 seconds when the melt experience exceeds thermal decomposition thresholds.

Where does the transition between flow-induced crystallization enhancement and thermal degradation nucleation loss hit equilibrium across high-shear runner systems?

Barrel

Extrusion profile selection requires precise management of conductive and viscous heat inputs. Screw geometry must minimize excessive shear generation while maintaining steady solids conveying and uniform melt homogenization. Flight depth ratios between 2.0:1 and 2.5:1 prevent localized shear spikes.

Zero-compression transition zones combined with long metering sections limit energy dissipation into the temperature-sensitive polymer chain.

Moisture exacerbates molecular decay through simultaneous hydrolysis at elevated temperatures. Resin pellets absorb atmospheric moisture rapidly due to the polar nature of aliphatic ester groups. Drying protocols mandate desiccant air drying to achieve moisture contents below 200 parts per million prior to feeding processing hoppers.

Processing wet resin converts ester bonds into hydroxyl and carboxyl end groups, compounding the molecular weight reduction initiated by thermal pyrolysis.

Where Does Melt Temperature Trigger Thermal Chain Scission?

Thermal chain scission accelerates sharply once the internal melt temperature exceeds the specific melting endotherm by more than 15 degrees Celsius. Barrel temperature zone profiles must step down toward the discharge end to manage total thermal exposure. Flat or rising temperature profiles create localized hotspots in the metering zone that destroy melt strength before the polymer reaches the die face.

Moisture content above 0.02 percent by weight measured via Karl Fischer titration at 150 C invalidates manufacturer melt flow rate warranties.

Proper barrel shutdown and purging sequences protect screw surfaces from corrosive crotonic acid accumulation. Purging must clear all biological polymer residue before stopping screw rotation or dropping temperatures. The mandatory purging procedure follows a clear mechanical order:

1. Stop resin feed from the main hopper and run the barrel completely empty at production RPM.
2. Introduce high-molecular-weight polyolefin purge compound with high melt strength and zero moisture sensitivity into the feed throat.
3. Displace all residual polyhydroxyalkanoate melt until the extrudate shows clear, uncolored polyolefin strand structure without bubbles or acid odor.
4. Reduce barrel temperatures to ambient while maintaining slow purge screw rotation until barrel zone readings fall below 100 degrees Celsius.

Standard purges ruin resins if allowed to sit static in hot zones. Residence time management dictates operational success. Dwell times inside the barrel must stay below three minutes to preserve melt integrity and mechanical output targets.

Stopping an injection unit or extruder with active polymer in the barrel creates rapid gas evolution, total melt degradation, and black speck contamination upon restart. A rule of thumb mandates that any unplanned line stoppage lasting over two minutes requires an immediate complete barrel purge with high-density polyethylene.

Cavity

Injection molding polyhydroxyalkanoate formulations demands tight control over mold wall temperatures and injection speed parameters. High mold temperatures between 60 and 90 degrees Celsius promote rapid spherulitic crystallization during the cooling phase. Cold molds yield sticky, amorphous parts that distort during ejection, while excessively hot molds keep the material above its peak crystallization temperature rate zone, extending cycle times unnecessarily.

Viscosity collapses under shear. Mold entry points must utilize full-sized gates to prevent localized viscous heating. Pinpoint gates generate intense shear stresses, elevating local melt temperatures past thermal degradation limits and causing gate blush, jetting, and localized embrittlement.

Submarine and cashew gates require generous radii and land lengths to minimize pressure drops while facilitating clean mechanical shearing during mold opening.

Optimizing injection parameters involves addressing several distinct setup variables:

• Mold temperature selection requires matching tool coolant settings directly to the co-monomer percentage to hit maximum crystallization velocity zones.
• Injection rate throttling limits shear-induced temperature rise inside thin-walled cavity profiles while preventing melt front stagnation.
• Back pressure minimization prevents mechanical shear degradation inside the plasticizing unit during the screw recovery phase.
• Cushion sizing calibration keeps residual melt volume in front of the screw tip small, cutting down thermal residence duration between shots.

Slow crystallization in un-nucleated formulations forces extended cooling cycles that double production cost per part.

Hold times require precision. Holding pressure must be applied immediately following fill completion to compensate for volumetric thermal shrinkage during crystallization. Back pressure settings should remain low, ideally between 0.3 and 0.5 MPa, preventing excessive mechanical heating during plasticization.

Hold times must persist until the gate fully freezes, preventing backflow of crystallization-expanded polymer out of the mold cavity.

Suppliers frequently claim that poor ejection performance stems exclusively from inadequate draft angles or rough cavity surface finishes. The true physical root cause remains incomplete solid-state crystallization inside the mold cavity prior to ejector pin forward stroke.

Recipe

Formulating viable commercial compounds requires compounders to introduce specific functional additives to stabilize the polymer matrix. Organic and inorganic nucleating agents reduce critical nucleus dimensions, accelerating crystallization rates and shrinking overall cycle times. Finely dispersed boron nitride, talc, cyanuric acid, or synthesized saccharide derivatives at loadings between 0.5 and 2.0 percent by weight provide effective heterogeneous nucleation sites.

Plasticizers improve impact resistance and lower the glass transition temperature, broadening the mechanical window for structural applications. Citrate esters, vegetable oils, and synthetic polyester plasticizers increase chain mobility within amorphous domain structures. These low-molecular-weight species lower melt viscosity, permitting reduced processing barrel temperatures that safeguard the resin against thermal cleavage.

Thermal stabilizers mitigate ester pyrolysis by neutralizing catalytic acidic degradation products or capping reactive chain ends. Organic phosphites, hindered phenols, and epoxy-functionalized reactive additives intercept free radicals and scavenge carboxyl groups during melt processing. Reactivating chain continuity through multifunctional epoxy or isocyanate chain extenders counters molecular weight drop by re-linking cleaved oligomer fragments inside the compounder barrel.

Raw resin procurement specifications must establish strict thresholds for chemical purity and processability metrics before accepting shipments:

• Melt index tolerance limits defined via ISO 1133 test conditions specifying maximum allowable melt flow rate shift across lot shipments.

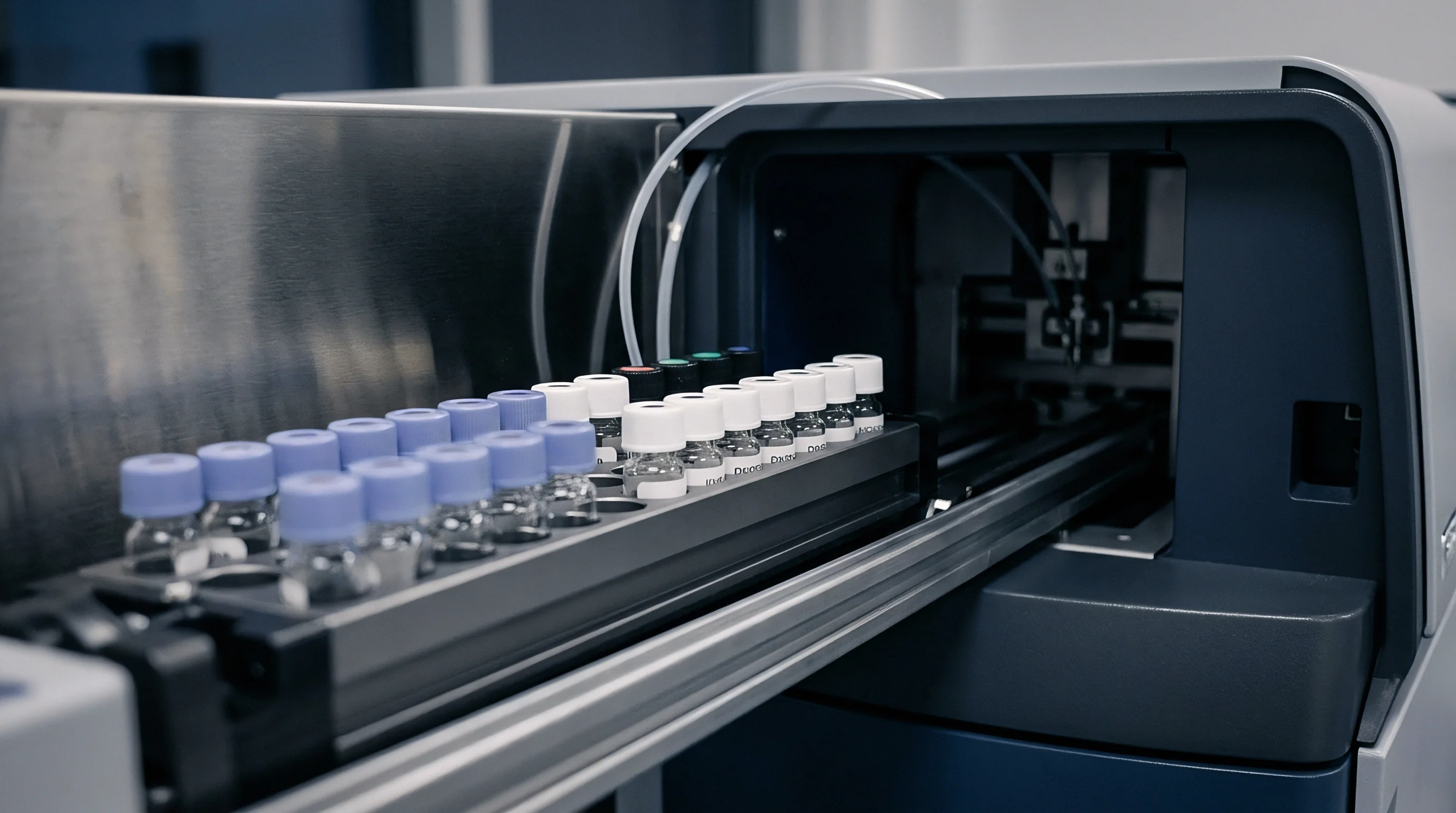

• Monomer ratio certificates quantifying co-monomer percentage distributions via nuclear magnetic resonance or gas chromatography testing.
• Volatile organic content caps limiting residual crotonic acid and fermentation solvent concentrations below 100 parts per million.
• Residual catalyst thresholds capping trace heavy metal ions that act as thermal degradation catalysts during melt processing.

Inorganic fillers like calcium carbonate, kaolin, and micro-talc increase thermal conductivity, enabling faster heat transfer out of molded components. Shear heating degrades polymer if filler surface treatments are omitted. Un-coated filler surfaces absorb functional additives, stripping plasticizers and nucleators out of the polymer phase.

Stearate-coated mineral fillers prevent additive absorption, reducing viscous shear heating while increasing flexural modulus values across converted components.

Standard procurement documentation must include a contract clause dictating that any lot exhibiting a melt flow rate change greater than fifteen percent after five minutes of dwell time at designated processing temperatures will be subject to direct shipment rejection at the supplier expense.

Audit

Quality assurance verification for incoming bio-based ester shipments requires precise analytical protocols to detect thermal instability before resin enters processing silos. Capillary rheometry dwell tests measure melt viscosity retention across extended time frames at processing temperatures. A rapid drop in zero-shear viscosity over a ten-minute holding test signals premature thermal instability, trace catalyst contamination, or high moisture content.

Differential scanning calorimetry provides fingerprinting data on melting points, crystallization enthalpy, and glass transition temperatures. First-heat thermograms reveal residual stress states and thermal processing history, while second-heat scans yield pristine material properties. Significant drops in melting peak sharpness or enthalpy values indicate broad molecular weight distributions resulting from prior thermal degradation during pelletization operations.

Clean barrels prevent contamination. Certificate of analysis records must be cross-checked against empirical bench evaluations prior to lot release. Melt flow rate figures supplied without explicit test load, temperature, and pre-heat residence times carry no operational validity.

Yield stress drops quickly. Verifying intrinsic viscosity via solution viscometry remains the definitive method for calculating true weight-average molecular weight changes without thermal interference during testing.

Commercial lot acceptance depends on quantifying degradation parameters using rigorous baseline controls. Receiving inspections must compare incoming melt stability data against established reference bounds to prevent high-scrap processing runs. Yield losses incurred from un-verified, thermally degraded resin lots impact net part costs significantly across long-run manufacturing schedules.

Establishing robust receiving verification workflows protects downstream equipment, maintains mechanical part integrity, and enforces compounder accountability across the material supply chain.
