Non Isothermal Moldflow Flow Mapping to Abaqus FEA Structural Analysis

Mesh

When short-fiber reinforced thermoplastic mouldings fail structurally, the cause often traces back to unexpected mechanical anisotropy set up during filling and packing. Standard structural FE calculations treat injection moulded polymers as isotropic, applying uniform handbook moduli throughout a part. In reality, flow forces glass fibers to align along flow lines, driving directional moduli, local Poisson ratio variations, and asymmetric thermal expansion.

Mapping state variables from a non-isothermal Moldflow simulation into an Abaqus structural mesh accounts for these spatial property variations by assigning localized material data directly to each integration point.

Because process simulations and structural stress analyses target different numerical problems, their meshes rarely match. Moldflow filling models rely on fine, boundary-aligned solid tetrahedra or mid-plane shell elements near gates, thin ribs, and high-shear channels to capture steep velocity and temperature gradients. Abaqus structural models focus instead on stress concentrations, contact surfaces, and flexural boundaries, often using quadratic hexahedra or coarser second-order tetrahedra.

Without spatial interpolation, direct element-to-element mapping fails ~ element topologies, node counts, and integration point coordinates simply do not align.

Transferring data between these disparate 3D meshes requires mapping algorithms that project scalar, vector, and tensor quantities across mismatched grids. The workflow measures the distance between source Moldflow integration points and target Abaqus integration points. Using shape function interpolation, it projects state variables ~ such as second-order fiber orientation tensors, volumetric shrinkage strains, and thermal fields ~ onto the target integration points without distorting the underlying structural stiffness matrix.

Mapping fiber orientation tensors onto mismatched structural grids with coarse interpolation tolerance smooths out localized shear-layer anisotropy by up to 34 percent near narrow rib intersections.

Mapping accuracy hinges on mesh resolution within the boundary shear layer. Injection moulded walls form a sandwich structure of skin, shell, and core layers through their thickness. High shear near cold mould walls aligns fibers parallel to flow within the shell, whereas lower shear and extensional flow near the center force fibers into transverse alignment in the core.

A structural mesh with only two solid elements through the thickness cannot resolve this gradient, smearing skin, shell, and core properties into a single average value.

Spatial Node Alignment and Topology Transfer

Mapping begins by aligning the global coordinate systems of the Moldflow source and Abaqus target. Toolmakers offset CAD geometries to compensate for mould shrinkage, whereas structural engineers place parts in assembly coordinates. Exporting Moldflow data without correcting for shrinkage offsets or coordinate transforms creates alignment errors, placing high-shear skin orientations onto interior structural nodes.

Proper geometric alignment matches bounding boxes, datum points, and symmetry planes before starting interpolation.

Solid 3D mapping requires greater interpolation density than mid-plane shell mapping. Moldflow 3D models typically build 10 to 20 tetrahedral layers through the thickness to capture cooling gradients and non-isothermal shear profiles. Meanwhile, Abaqus models using C3D8R linear hexahedra or C3D10M quadratic tetrahedra need sufficient through-thickness density to capture bending stresses.

Using nearest-neighbor interpolation during this transfer introduces step discontinuities between elements; shape function interpolation weighted by distance avoids these property jumps, yielding smooth orientation tensors and residual stresses across element boundaries.

Mapping 3D solid Moldflow models directly onto Abaqus shell elements relies on heavy geometric assumptions. Shell formulations define geometry along a reference mid-surface and assign properties to discrete through-thickness integration points. Spatial routines project 3D solid node data along normal vectors from this mid-surface, collapsing solid element results into equivalent shell integration points.

On curved or skewed surfaces, normal vectors can cross multiple solid elements, distorting the through-thickness orientation profile and overstating flexural stiffness.

Interpolation errors propagate directly into stress calculations. Skipping through-thickness mesh convergence checks before exporting material data invalidates downstream structural load predictions. Mapped node distributions should be checked by calculating residual norms between original Moldflow tensor components and target Abaqus integration point values.

If primary principal orientation components differ by more than 5 percent, the target structural mesh must be refined locally or the interpolation radius tightened to avoid artificial stress concentrations.

Ignoring mesh discretization differences when mapping fiber alignment fields causes false structural convergence, leading to non-conservative yield estimates and unexpected fatigue failures under multiaxial dynamic loads.

Heat

Non-isothermal flow dictates the state of the finished moulding. Polymer melt enters the cavity at over 280 degrees Celsius, hitting mould walls held between 60 and 120 degrees Celsius. Rapid heat loss at the boundary freezes the outer skin immediately, driving steep thermal gradients from the surface to the molten core.

Meanwhile, high shear rates in the fluid sub-layer generate viscous heating, shifting local viscosity and delaying cooling near the core. These shifting thermal histories govern local crystallization kinetics, frozen-in molecular orientation, and volumetric thermal contraction.

Process simulations capture this transient temperature field by solving the non-isothermal energy equation coupled with non-Newtonian viscosity models. The Cross-WLF viscosity equation describes flow behavior during filling and packing:

eta(T, gamma_dot, p) = eta_0(T, p) / (1 + (eta_0 gamma_dot / tau_star)^(1 – n))

Here eta_0 is zero-shear viscosity, T is absolute temperature, p is pressure, gamma_dot is shear rate, n is the Power Law index, and tau_star is the relaxation stress threshold. Fast thermal transfer at frozen boundaries drives local viscosity up by orders of magnitude within milliseconds, halting fiber rotation and locking high-shear orientation vectors parallel to the wall.

Bringing thermal histories from Moldflow into Abaqus requires converting non-isothermal temperature fields into initial stresses. As the polymer cools from its no-flow temperature to ejection, uneven thermal contraction leaves localized residual stresses. The core cools slowly inside a rigid frozen skin, building hydrostatic tension in the interior and high compression at the surface.

Mapping end-of-pack and cooling temperature fields supplies the initial thermal conditions for structural analysis.

1. Export the transient thermal node field from the Moldflow cooling solver at the frame corresponding to mould opening and part ejection.
2. Transform and scale Moldflow thermal grid coordinates to align with the undeformed Abaqus structural mesh coordinates.
3. Interpolate nodal temperatures onto Abaqus integration points using distance-weighted shape functions.
4. Define temperature-dependent secant thermal expansion coefficients in Abaqus across the operating range.
5. Run an initial thermal stress step in Abaqus with the mapped temperature gradient field to establish locked-in residual stresses before applying external loads.

Cooling freezes skin layers rapidly. The resulting thermal gradients create internal residual stresses that subtract directly from yield strength under load. Unconstrained components warp to relieve these stresses, whereas constrained assemblies retain internal stresses ~ reaching up to 45 MPa in unreinforced polyamides.

Omitting these thermal fields means structural FEA ignores compressive skin stresses and tensile core stresses, throwing off failure predictions during bending or impact.

Viscous dissipation during fast injection forms warm core zones near small sub-gates, extending cooling times and causing local volumetric shrinkage. Mapping non-isothermal profiles captures these hotspots, transferring shrinkage strains into Abaqus as initial strain fields. Abaqus imports temperature fields through INITIAL CONDITIONS, TYPE=TEMPERATURE commands or user FIELD variables, allowing material models to adjust local moduli and yield stress according to thermal history.

Material data sheets often rely on linear thermal expansion coefficients measured via ASTM E831, ignoring the anisotropic heat transfer and shear-induced thermal gradients typical of thin-walled mouldings.

Tensor

Fiber orientation dictates the anisotropic stiffness tensor throughout short-fiber reinforced mouldings. Suspended in the polymer matrix, individual fibers rotate in response to velocity gradients, shear, and extensional flow during filling. Tracking thousands of fibers per cubic millimeter individually is impractical, so orientation is described statistically.

The second-order orientation tensor A_ij captures this directional probability distribution at any point in the material:

A_ij = integral (p_i p_j psi(p) d_omega)

Vector p is the unit orientation vector of a single fiber along Cartesian axes, and psi(p) is the probability density function over the unit sphere omega. Diagonal components A_11, A_22, and A_33 represent alignment strength along the principal axes and sum to unity. An A_11 value of 1.0 indicates complete alignment along X, whereas an isotropic distribution gives 0.333 for each diagonal term.

Moldflow tracks the evolution of the second-order orientation tensor using the Folgar-Tucker equation, modified by Reduced Strain Closure or Anisotropic Rotary Diffusion models:

d_A_ij / d_t = (W_ik A_kj – A_ik W_kj) + lambda (D_ik A_kj + A_ik D_kj – 2 A_ijkl D_kl) + 2 C_I gamma_dot (delta_ij – 3 A_ij)

Here W is the vorticity tensor, D is deformation rate, lambda is a shape parameter based on fiber aspect ratio, C_I is the interaction coefficient, and A_ijkl is the fourth-order orientation tensor. Solving this transport equation requires approximating A_ijkl from A_ij using closure models such as Orthotropic Closure (ORT) or Invariant-Based Optimal Closure (IBOF).

Second-order orientation tensors with principal components below 0.65 signal highly isotropic core layers that yield prematurely under uniaxial tensile loads.

Transferring orientation data to Abaqus requires mapping all six independent components of the symmetric tensor (A_11, A_22, A_33, A_12, A_13, A_23) onto each integration point. Micromechanical homogenization then computes structural properties from these values. At each integration point, the local elastic compliance tensor C_ijkl is calculated by orienting fiber and matrix phase properties according to the mapped tensor.

Near cavity walls, shear forces dominate, generating high A_11 values parallel to flow in the shell layer. Near the center, extensional flow at the advancing melt front turns fibers sideways, causing A_22 to exceed A_11 in the core. Capturing this layered variation through the wall requires fine mapping resolution to avoid averaging out regions of transverse weakness.

Exporting orientation fields from Moldflow produces interface files containing tensor components per element or per node. Tools like Digimat-MAP or Abaqus Advanced Material Exchange read these raw tensor fields and rotate local material axes at each integration point. Material axis 1 aligns with the principal eigenvector of the mapped tensor, establishing the local longitudinal stiffness direction.

Micromechanical models use mapped tensor values to build 21-parameter anisotropic elasticity matrices for structural analysis. The Mori-Tanaka homogenization scheme computes effective composite stiffness C_eff from matrix stiffness C_m, fiber stiffness C_f, fiber volume fraction V_f, and Eshelby’s strain concentration tensor S:

C_eff = C_m + V_f (C_f – C_m) A_single (V_m I + V_f A_single)^(-1)

The single-inclusion strain concentration tensor A_single integrates over orientation space using mapped A_ij values. Omitting shear components like A_12 or off-axis alignment vectors truncates the material transformation, yielding incorrect principal stress directions under complex structural torsion.

Near gates, fiber alignment often approaches isotropic distributions because of turbulent melt entry and fountain flow dynamics.

Yield

Anisotropic mechanical behavior extends well beyond the linear elastic regime. Short-fiber polymers exhibit non-linear elastoplastic deformation, progressive matrix micro-cracking, fiber debonding, and shear banding before failure. Standard isotropic yield criteria, such as von Mises surfaces, break down for injection moulded parts.

Von Mises assumes identical yield strength in all directions, but a 30 percent glass-filled polyamide 66 yields at 175 MPa parallel to fiber alignment versus 85 MPa perpendicular to flow.

Preserving mechanical anisotropy into plastic yield requires mapping the second-order orientation tensor onto structural integration points. In Abaqus, anisotropic yield surfaces must account for directional yield stress variation. The Hill48 criterion expands equivalent yield stress using six anisotropic yield ratios:

f(sigma) = sqrt(F (sigma_22 – sigma_33)^2 + G (sigma_33 – sigma_11)^2 + H (sigma_11 – sigma_22)^2 + 2 L sigma_23^2 + 2 M sigma_31^2 + 2 N sigma_12^2)

Parameters F, G, H, L, M, and N are derived from tensile and shear yield test data taken parallel, perpendicular, and at 45 degrees to flow. Advanced micromechanical models calculate these parameters dynamically at each integration point using mapped tensor components and matrix yield properties.

Isotropic yield criteria overestimate structural load capacity by up to 40 percent when applied to cross-flow rib locations subjected to transverse bending.

Homogenization interfaces supply localized elastoplastic constitutive equations directly to Abaqus through UMAT or VUMAT subroutines. Tools like Digimat and Abaqus Advanced Material Exchange update the local non-linear stress-strain response at each load increment, calculating J2 plastic flow in the polymer matrix while treating glass fibers as rigid elastic inclusions. Strain hardening follows modified Swift-Voce laws calibrated against orientation-specific test curves.

Matrix yielding occurs before fiber fracture. As plastic strain accumulates in the matrix, the local tangent modulus drops, transferring load onto aligned fibers. Micromechanical models track this load shift step by step, updating the local tangent stiffness matrix within Abaqus.

Under multiaxial loading, the angle between the principal stress tensor and the fiber orientation vector dictates whether failure starts through matrix shear yielding or fiber debonding.

Why Does Isotropic Failure Modeling Fail in Short Fiber Polyarylamides?

Isotropic failure models use a single yield stress value, ignoring the drop in strength when tensile stresses run perpendicular to fiber alignment. Under flexural bending, maximum outer-fiber tensile stresses occur along the shell layer. If gate placement causes melt flow perpendicular to applied tension, the part relies strictly on transverse matrix strength, yielding well below datasheet values.

Mapped FEA captures these spatial yield limits, flagging failure initiation at transverse rib roots that isotropic models treat as safe.

• Transverse matrix cleavage occurs where principal tensile stress acts perpendicular to fiber alignment, triggering plastic yield at low stress levels.
• Interfacial fiber debonding develops near fiber ends under high shear, reducing reinforcement efficiency before matrix yielding finishes.
• Localized shear banding forms in core layers with low orientation tensor magnitudes, causing localized necking and rapid strain concentration.
• Compressive micro-buckling initiates in high-orientation skin layers under compressive bending, triggering instability below tensile yield limits.

Homogenization links microstructure directly to structural response. Relying on isotropic plastic properties forces engineers to use large safety factors, thickening walls and adding weight to lightweight structures. Mapping full elastoplastic material states allows engineers to trim wall thickness while preserving structural integrity across load cases.

Evaluating non-linear plastic response under impact requires strain-rate sensitivity in mapped material definitions. High strain rates elevate matrix yield strength while reducing ultimate elongation. Non-isothermal mapping interfaces pass strain-rate scaling factors to Abaqus VUMAT subroutines, adjusting the anisotropic yield surface based on integration point strain rates during dynamic crash calculations.

It remains unclear how progressive matrix micro-cracking during cyclic loading alters local anisotropy tensors before macro-cracks form.

Crack

Weld lines are major mechanical weak points in injection moulded parts. When advancing melt fronts meet after flowing around core pins, openings, or multiple gates, they form a distinct interface. Cooling at the melt fronts and poor molecular entanglement weaken the join.

Furthermore, glass fibers rarely bridge across a weld line; fountain flow reorients fibers parallel to the meeting plane, leaving no fiber reinforcement across the interface.

Accurate failure prediction requires mapping weld lines from Moldflow to Abaqus. Moldflow tracks converging melt fronts, exporting weld line coordinates and meeting angles. Meeting angles under 135 degrees indicate cold weld lines where frozen skin layers block molecular interdiffusion.

Melds formed at angles above 135 degrees retain more strength, though fibers remain aligned parallel to the join line.

Mapping algorithms apply localized knockdown factors to Abaqus elements that intersect weld lines, lowering local tensile strength and strain-at-break. Interface software projects 3D weld line surface nodes onto the structural mesh to locate elements containing the defect. The material definition in these elements is then updated with an anisotropic damage model or a reduced yield surface.

1. Identify converging melt front nodes in Moldflow, recording local melt temperature, meeting angle, and pressure at impact.
2. Spatial projection onto Abaqus mesh isolates structural elements containing weld line geometry, creating element sets along the defect interface.
3. Calculate local strength knockdown factor using meeting-angle degradation curves combined with fiber orientation components parallel to the join plane.
4. Apply anisotropic cohesive properties or reduced yield surfaces to weld line element sets within the Abaqus input file.
5. Execute structural stress step to capture strain concentration and early crack initiation along the unreinforced interface.

Tensile strength drops sharply at weld lines. For example, 30 percent glass-filled polypropylene retains under 45 percent of its unwelded strength at cold weld lines. Under flexural or cyclic loading, strain concentrates along this unreinforced plane.

Mapped Abaqus models capture this strain localization, showing micro-cracks forming at weld lines at global load levels that look safe elsewhere in the part.

Inserting cohesive zone elements (such as CGap or C3D8 cohesive elements) along mapped weld line planes allows explicit fracture modeling. Mapped state variables define the bilinear traction-separation properties: peak traction T_0 scales with meeting angle, while critical fracture energy G_c updates from mapped temperature fields at fusion. This enables simulation of weld line delamination and macro-crack growth under shock loading.

Weld line knockdowns reduce local strain-at-break values by up to 70 percent in short-fiber polyamides, rendering standard failure strain criteria invalid along melt front meeting planes.

ISO 527 tensile specs call for testing homogeneous specimens moulded from end gates, hiding weld line degradation entirely. Procurement contracts should include explicit terms requiring weld line strength verification on samples cut from multi-gated production parts:

Contract Clause DIN-16742-WL4: The structural performance acceptance criterion requires that all weld line locations mapped via non-isothermal flow simulation retain a minimum of 65 percent of the bulk anisotropic tensile strength mapped for that element set under ISO 527-2 Type 1A testing, with failure locations matching FEA mapped strain concentrations within a spatial tolerance of plus or minus 1.5 millimeters.

Omitting weld line mapping from structural FEA makes it impossible to predict early brittle failure at multi-gated rib intersections under shock loading.

Audit

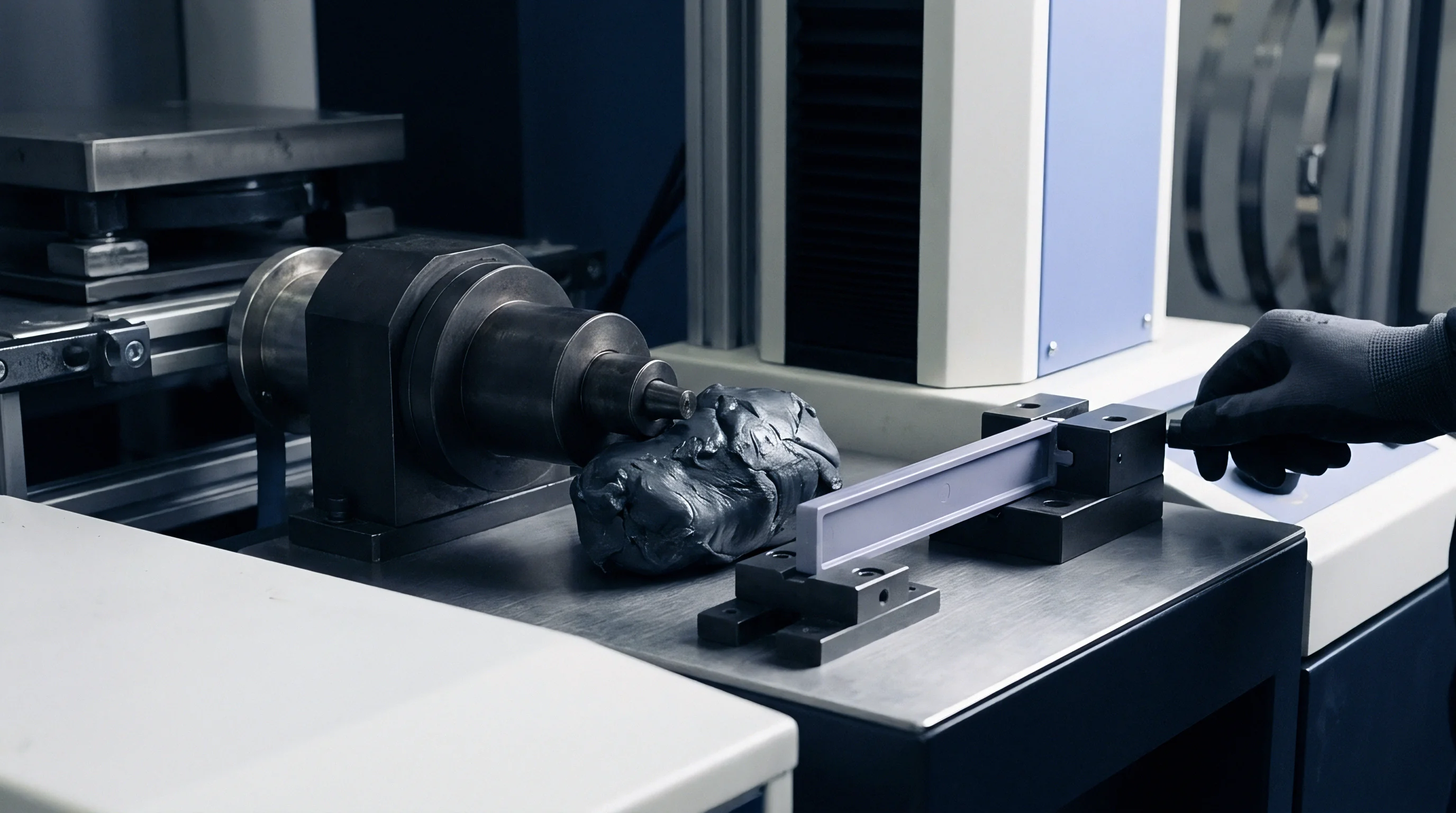

Validating mapped structural FEA models requires physical testing. Workflows that map non-isothermal Moldflow flow fields into Abaqus need systematic auditing before structural sign-off and tool cutting. Physical verification uses ISO 527 Type 1A tensile bars cut from flat moulded plates at 0-degree, 45-degree, and 90-degree angles to primary melt flow.

Comparing test stress-strain curves against mapped Abaqus integration point outputs verifies homogenization accuracy and mapping integrity.

Tensile bars cut at 0 degrees measure maximum longitudinal modulus E_11, governed by shell-layer fiber alignment. Samples cut at 90 degrees give transverse matrix modulus E_22, while 45-degree bars validate shear modulus G_12 and anisotropic yield transition behavior. If predicted and measured moduli differ by more than 8 percent, the fiber interaction parameter C_I in the flow simulation is likely off, or spatial interpolation errors occurred during mesh transfer.

Structural warpage offers another physical check. Moldflow predicts post-moulding thermal and fiber-induced deflection fields. Mapping these residual strain fields into Abaqus and running an unconstrained static equilibrium step calculates final part distortion.

Scanning physical T1 sample mouldings with 3D optical profilometry produces spatial deviation maps. Overlaying scan data onto Abaqus warpage predictions confirms whether mapped residual stresses accurately mirror real shrinkage.

Mapped state variables govern final part deflection. Moldmakers set core and cavity dimensions using anisotropic shrinkage predictions from mapped warpage analyses. Cutting steel based on isotropic shrinkage assumptions causes parts to warp outside tolerance grade ISO 2768-mK, leading to costly tooling re-works.

Accurately mapped non-isothermal state variables enable toolmakers to machine target dimensions that compensate directly for directional shrinkage.

Structural deflections can shift by over 12 percent when isotropic approximations replace orthotropic tensor fields. Mapping full non-isothermal Moldflow fields to Abaqus builds a reliable digital representation of the moulding process. Tooling capital should only be committed once mapped Abaqus analyses show that local yield, fatigue, and warpage stay safely within design limits across operating temperatures.

Sign-off requires archiving the full mapping dossier: Moldflow solver build numbers, spatial interpolation residual logs, Digimat or Advanced Material Exchange material card versions, and Abaqus integration point state variable files. Maintaining this traceability chain speeds root-cause diagnosis if production audits uncover dimensional drift or field failures.
