Injection Mold Bailment Contracts and Cross-Border Title Transfer Protocols

Cross-border injection mould bailment requires progressive title vesting, registered public security filings, and explicit lien waivers before moving steel.

06.09.26 26 min

Deed

Transferring legal ownership of an injection mould across international borders requires a different legal mechanism than selling finished piece-part mouldings. When a buyer pays a tooling deposit, capital leaves one balance sheet and sits on a foreign supplier’s ledger long before CNC milling touches the first steel block. The underlying contract determines whether that deposit buys a finished capital asset, a service creating production capability, or an equitable interest that matures into full title at specific qualification gates.

Equating tooling invoice payments with immediate title perfection creates significant risk during manufacturing disputes, supplier insolvencies, or customs audits.

The contract needs to specify exactly when title moves from the toolmaker or contract manufacturer to the buyer. Purchase agreements often tie title transfer to final invoice payment, yet those invoices are regularly settled well before completing the Production Part Approval Process. Passing title before physical mould qualification forces the buyer to assume property risk for a tool that might never meet critical drawing tolerances under DIN 16742 grade TG4.

On the other hand, pushing title transfer until high-volume production begins leaves legal ownership with the supplier through initial sampling, exposing the buyer to creditor attachments if the moulder enters bankruptcy during trials.

Legal ownership structures split into three operational models across global tooling supply chains:

  • Direct capital purchase assigns title immediately upon completion of defined milestone payments, establishing the buyer as the sole proprietary owner of the core, cavity, hot runner system, and mould base.
  • Amortized piece-price tooling keeps legal title with the moulder until an agreed component volume ships, embedding tool depreciation into each individual moulding invoice.
  • Hybrid production bailment transfers title upon initial sample approval while granting the supplier an exclusive, revocable possessory license to run parts on designated presses.

Which model you select dictates how asset value sits on corporate balance sheets and how foreign tax authorities treat the transaction. Tooling built in Shenzhen, Stuttgart, or Monterrey is subject to local statutory presumptions about who owns physical equipment on a factory floor. In civil law jurisdictions, physical possession creates a rebuttable presumption of ownership.

Without documented title transfer protocols backed by stamped commercial invoices and bill-of-sale certificates, a foreign buyer will struggle to prove ownership against local tax authorities pursuing back taxes from an insolvent supplier.

Under Section 2-401 of the Uniform Commercial Code and equivalent civil code provisions, title cannot pass prior to the physical identification of the specific tool steel to the contract.

Commercial disputes frequently arise when buyers fail to tie title transfer directly to engineering qualification benchmarks. A tool that yields acceptable T1 visual samples under short toolroom sampling can easily reveal severe thermal imbalances during a four-hour continuous run at production cycle times. If the bailment contract triggers title transfer upon initial sample receipt, the buyer ends up holding title to an unoptimized, commercially unviable tool while the toolmaker demands final payment.

Nested circular and geometric polymer components arranged in an abstract graphic composition feature recycled composite textures alongside metallic injection trays.

Milestone Payment Triggers and Ownership Passage

Structuring progress payments works best when capital disbursements mirror verifiable engineering deliverables. Toolmakers typically ask for forty percent on purchase order issuance, thirty percent upon first off-tool part delivery, and thirty percent on formal part approval. That initial forty percent commitment funds raw steel procurement, hot runner manifolds, and primary electrical discharge machining ~ at a stage when the tool is still just unworked steel blocks and digital toolpaths.

Title transfer language offers the most security when written as a progressive vesting mechanism. The contract assigns fractional ownership of raw materials and work-in-progress as payments clear, leading to full title transfer upon formal Part Submission Warrant sign-off. This stops a toolmaker from pledging partially machined steel blocks as collateral to commercial lenders.

Because machining P20, H13, or S136 tool steel permanently transforms generic stock into custom production assets, progressive title clauses ensure the buyer’s equitable lien stays attached to the steel through heat treatment, electrical discharge machining, wire cutting, and cavity polishing.

Releasing milestone payments should depend on physical documentation. Wire transfers for balance payments ought to wait until high-resolution dimensional verification reports, metallurgical mill certificates for the raw steel, and unpolished T1 moulding samples are delivered. Toolmakers often push for final payment as soon as part samples ship, but experienced procurement teams hold the remaining twenty to thirty percent until capability studies prove that key dimensions maintain a capability index exceeding 1.33 across a continuous eight-hour press run.

A black industrial hopper pump assembly is mounted above a clear acrylic platform holding a glass skull filled with liquid, all resting on a textured surface.

Who Pays Local Value Added Tax?

Cross-border tooling orders create complicated indirect tax liabilities depending on where the tool physically sits when title changes hands. If a North American buyer purchases a mould from a Chinese toolmaker and leaves it in China for contract production, local tax authorities treat the purchase as a domestic sale of goods. This triggers Chinese Value Added Tax at standard rates ~ currently thirteen percent ~ plus local surcharges.

Taking title while the tool stays inside China without an export customs declaration forfeits zero-rated export tax treatment.

Managing indirect taxes requires clear contractual terms assigning responsibility for local filings. Foreign buyers cannot directly reclaim local Value Added Tax without a registered domestic entity. Contract manufacturers frequently bill the gross amount including tax and offer to credit that VAT against future part orders ~ a habit that locks up significant capital in a foreign jurisdiction.

Similarly, transferring title to a tool located in Germany or Poland between two non-resident entities triggers immediate local Value Added Tax registration and reporting under European Union cross-border asset rules.

Tax and customs authorities look at where the physical steel is located when the invoice is issued. If the invoice shows title passed within the manufacturing country, tax inspectors will disallow export exemptions even if the mould is shipped overseas twelve months later. Contracts should explicitly separate local taxes from capital tooling costs and include indemnification clauses to protect the buyer from retroactive tax assessments caused by the supplier’s internal accounting mistakes.

Milestone Allocation, Payment Triggers, and Legal Title Attachment Status
Milestone Stage Typical Payment Percentage Required Technical Deliverable Legal Title and Ownership Status
Tooling Kickoff 40% Approved 3D mould design, steel mill certificates, hot runner order receipts Title retained by toolmaker; equitable lien attaches to purchased raw steel
First Shot (T1) 30% Initial samples, basic dimensional CMM report, gate vestige inspection Progressive title vests proportionally to cumulative cash disbursements
Dimensional Signoff (T2/T3) 20% Full 32-point dimensional layout under DIN 16742, steel safe adjustments Equitable title fully established; tool held in legal bailment for testing
PPAP / Part Approval 10% Cpk exceeding 1.33, 8-hour continuous run data, signed Part Submission Warrant Complete unencumbered legal title transfers entirely to buyer
A manufacturing technician carefully positions a heavy steel injection mold component onto a production line within a precision machining workshop.

Asset Separation on the General Ledger

Capitalizing tooling assets requires clear accounting separation between the physical mould and the parts it produces. Corporate accounting standards prohibit bundling tooling development costs into operating expenses when the buyer retains proprietary rights to the mould design and physical steel. The tool enters the books as Property, Plant, and Equipment, depreciated over its productive life in rated shots or straight-line years.

This accounting distinction stops tax authorities from reclassifying cross-border tooling payments as hidden royalties or engineering design fees subject to withholding tax. When auditors inspect international wire transfers, unassigned payments to overseas contract manufacturers draw immediate scrutiny. Clear documentation separating tooling capital expenditures from recurring part purchase orders proves that payments cover tangible machinery rather than taxable intellectual property transfers.

An itemized tool specification sheet listing cavity counts, base dimensions, and hot runner serial numbers alongside a commercial bill of sale creates an enforceable audit trail.

The tooling purchase order must state: Buyer acquires one hundred percent unencumbered legal title to the custom injection mould tooling, including all cores, cavities, slides, lifters, hot runner manifolds, and associated engineering drawings, with full title vesting in Buyer immediately upon final milestone acceptance.

Custody

Handing over a multi-cavity production tool to a contract manufacturer creates a legal bailment, separating physical possession from ownership. The buyer is the bailor retaining title, while the moulder acts as the bailee holding the steel solely to produce specified components. Without a comprehensive written bailment agreement, local courts default to basic statutory custody rules that offer little protection against unauthorized mould modifications, unapproved subcontracting, or gray-market production overruns.

A bailment agreement strictly limits how the moulder can use the tool, restricting press operation to purchase orders issued directly by the bailor. Without tight controls, moulders running high-cavitation tooling sometimes run unauthorized extra shifts, using the buyer’s precision asset and lower-grade regrind or off-spec polymers to make extra parts. To prevent this, bailment contracts should mandate tamper-proof, non-resettable shot counters permanently mounted to the mould base.

Custody terms also protect the physical condition of the tool over its working life. The moulder should take on strict liability for damage caused by operator error, incorrect clamp tonnage, dry leader pins, or slide crashes stemming from broken limit switches. A solid agreement requires the bailee to carry full property and casualty insurance for the tool’s replacement value, naming the bailor as sole loss payee on every insurance certificate.

A digital illustration shows a cross-section of industrial machinery processing dark bulk material into translucent spherical plastic pellets.

Preventative Maintenance Schedules and Tool Wear Limits

Holding dimensional tolerances over hundreds of thousands of cycles requires disciplined maintenance protocols. Tool steel wears down from mechanical friction, thermal cycling, and corrosive gas released by molding resins. Resins like flame-retardant polyamides and PVC off-gas aggressive compounds during processing that quickly pit unprotected cavity surfaces.

The bailment contract needs clear maintenance requirements tied to specific cycle thresholds.

The contract categorizes preventative maintenance into operational tiers:

  • Shift-level maintenance includes cleaning parting lines, degreasing slide faces, inspecting ejector pins for galling, and applying food-grade corrosion inhibitors during press downtime.
  • Intermediate servicing requires pulling core inserts, ultrasonic cleaning of water cooling channels to remove mineral scaling, replacing worn copper beryllium pinch-offs, and repolishing diamond-finished optical surfaces every fifty thousand shots.
  • Major tool refurbishment mandates complete teardown, replacement of leader pins and bronze bushings, remachining worn parting line shut-offs, and replacing hot runner heater bands every two hundred and fifty thousand shots.

Sorting out financial responsibility for wear parts prevents operational disputes. Standard consumables like O-rings, thermocouple wires, heater bands, and return springs are routine operational expenses covered by the moulder’s piece-price margin. Major refurbishments caused by normal fatigue remain the buyer’s capital responsibility, assuming the moulder maintains verified shot counter logs proving compliance with maintenance schedules.

A tool running POM or filled PBT without weekly parting-line ultrasonic cleaning will experience vent degradation within forty thousand shots, inducing severe flash along aesthetic split lines.

Lacking maintenance records undermines warranty claims against the toolmaker. If a cavity surface cracks prematurely, the toolmaker will blame insufficient water flow, poor hydraulic sequencing, or excessive injection pressure. Requiring press operators to log injection parameters, chiller temperatures, and cycle times at the machine provides the objective data needed to resolve disputes between the toolmaker and the moulder.

Precision metallic mold tooling and polymer caps rest on a dark gridded surface prepared for manufacturing prototyping or quality control inspection.

Cavity Modifications and Engineering Change Authority

Modifying tool steel without formal engineering approval ruins dimensional control and invalidates downstream assembly qualification. Moulders facing tight cycle times sometimes attempt quick fixes, like enlarging gate diameters to lower injection pressure or shifting core pins to cover up sink marks. The bailment contract must forbid welding, grinding, EDM work, or surface coatings unless backed by an Engineering Change Order signed by the buyer’s tooling engineer.

When part design updates require steel modifications, the agreement should define the exact process for execution. Cutting steel away (steel-safe adjustments) is relatively simple, but building material back up through laser welding or pocketing inserts risks structural weakness. The contract should state that welded repairs on class-A visual surfaces or high-pressure shut-offs give the buyer the right to demand new inserts machined from virgin forged steel at the responsible party’s expense.

Physical changes to the mould alter the baseline design files. Moulders must provide updated 2D and 3D CAD files showing the exact as-built condition within fifteen business days of any physical change. Out-of-date tooling drawings prevent the buyer from transferring production to another supplier, since the new moulder will lack the documentation needed to set machine parameters or cut replacement components.

Transparent transfer line directs blue polymer resin pellets toward a machine intake aperture fixed against a textured concrete wall in a production facility.

Physical Segregation inside the Production Facility

Storing custom tooling in a busy contract manufacturing plant carries operational and legal risks. In crowded shops, unmounted tools are easily stripped of cooling fittings, robbed of hot runner controllers for adjacent presses, or exposed to humid, corrosive air. The bailment contract should require that when a mould is offline, it is stored in a designated, climate-controlled rack with its parting lines secured by safety transport bars.

Legal protection depends on clear physical identification. The mould base should have a permanently riveted stainless steel or brass plaque stamped in English and the local language, stating: Property of Buyer Name, Asset Tag Number, Strictly Protected by Bailment Agreement, Unauthorized Movement or Pledging Prohibited. These tags defeat claims of apparent ownership by third-party creditors or landlords trying to seize shop equipment.

The contract must grant the buyer physical access to the facility during standard working hours. Field engineers need the right to inspect tool condition, check shot counters, review press logs, and audit storage conditions on no more than twenty-four hours’ notice. Denying access constitutes a material breach that triggers immediate repossession rights.

Tooling modifications are often executed during overnight shifts under the explanation of preventing severe production line stoppages for urgent shipments.

Crate

Crossing international borders turns an injection mould into cargo subject to tariffs, temporary import rules, and transit risks. Moving a precision four-cavity tool weighing three metric tons over ocean or air freight demands precise documentation to avoid port holds, tariff penalties, and transit corrosion. The customs filing must accurately state the tool’s classification, economic value, and legal ownership.

International shipments of injection moulds fall under Harmonized System code 8480.71, which covers injection and compression moulds for rubber or plastics. Misclassifying tooling under generic machinery parts codes (HS 8477) to bypass inspections creates serious legal liability for customs fraud. Port inspectors examine tooling filings closely, comparing invoiced values against weight and complexity; undervaluing a tool to trim tariffs leads to fines, asset seizures, and customs delays that ruin launch schedules.

Documentation for cross-border tool movement requires precise paperwork matching:

  1. Pro forma commercial invoices must state the tool’s true replacement value alongside an explicit declaration of ownership, identifying the shipment as a bailment transfer rather than a commercial sale of goods.
  2. Certificates of origin establish the metallurgical and manufacturing origin of the tool steel, securing preferential duty rates under regional trade agreements such as USMCA or EU trade treaties.
  3. Ocean bills of lading or airway bills must list the buyer as the absolute consignee or notify party, preventing freight forwarders from releasing the physical crate without written buyer authorization.
  4. Packing lists must provide detailed gross and net weights, external dimensions of wooden crates, and an itemized breakdown of loose accessories, spare inserts, and hot runner control units.
  5. Phytosanitary treatment certificates prove that solid wood packaging complies with ISPM 15 heat treatment standards, avoiding port rejections and mandatory fumigation holds.

Compliance failures frequently occur when buyers import moulds on a temporary basis without establishing the required regulatory bonds. When tooling enters a country temporarily for production, using import relief programs avoids standard duties and Value Added Tax. In Mexico, the IMMEX program allows duty-free temporary import of tooling if the finished plastic parts are exported within statutory timeframes.

In the European Union, Inward Processing Relief provides similar tariff suspensions.

An industrial injection moulding machine operates near a large bulk storage bag and overhead crane inside a high ceiling polymer production facility.

Customs Valuation and Temporary Import Regimes

Determining customs value gets complicated when the buyer supplies designs, engineering support, or raw inserts to the toolmaker free of charge. Customs authorities classify these contributions as assists under the World Trade Organization Valuation Agreement. The value of engineering assists must be added to the tooling invoice price to calculate total customs valuation.

Leaving assist values off import filings lowers the dutiable base unlawfully, exposing the importer to retroactive duty assessments and fines.

When transferring a tool between foreign manufacturing sites, choosing between definitive and temporary import sets your tax liability. Definitive importation pays all duties and non-recoverable taxes upfront, giving the tool permanent domestic status. Temporary importation under an ATA Carnet or national bond suspends duties for twelve to twenty-four months.

If production runs past the bond expiration without renewal, the bond defaults, triggering immediate duty demands and penalties.

Customs authorities track temporary tooling imports closely. When production finishes, the tool must physically clear export customs, transfer to another bond holder, or convert to a definitive import by paying duties on its depreciated value. Leaving temporary import filings open ties up customs bonds and disrupts future shipments across the border.

Customs Classifications, Duty Regimes, and Import Documentation Requirements for Tooling
Customs Mechanism Applicable HS Code Duty / Tax Treatment Key Compliance Obligation
Definitive Import 8480.71.00 Full customs duty paid based on transaction value plus assists; local VAT paid Permanent domestic status; no export timeline tracking required
ATA Carnet 8480.71.00 Full duty and VAT suspended via international guarantee bond Mould must re-export within 12 months in identical physical condition
IMMEX (Mexico) 8480.71.00 0% VAT and duty suspension under general Annex 24 inventory control Manufactured plastic parts must export; tool tracked in automated customs ledger
Inward Processing (EU) 8480.71.00 Import duties and VAT suspended under customs authorization Periodic discharge billings required; strict processing records maintained
Precision machined steel mold inserts rest atop a stack of corrugated cardboard sheets near an industrial manufacturing station.

Asset Identification Plates and Machine Tagging

Physical customs inspections rely on immediate visual verification matching shipping paperwork to the crated tool. Customs officers at crossings like Laredo, Rotterdam, or Shanghai check serial numbers against commercial invoices. If an asset plate is missing, unreadable, or taped on loosely, officials will hold the shipment for physical inspection, running up thousands of dollars in port storage fees.

Asset plates should be mechanically fastened to the operator side of the mould base using drive screws or blind rivets. Plates ought to be made from 304 stainless steel or deep-engraved anodized aluminum, displaying the commercial invoice number, tool serial number, cavity layout, dimensions, dry weight in kilograms, and full legal owner name. For tools in bonded customs regimes, the local customs registration number or IMMEX pedimento code should be stamped directly into the mould base steel.

Tagging extends to all auxiliary equipment and spare parts shipped with the mould. Hot runner temperature controllers, spare inserts, hydraulic core cylinders, and end-of-arm tooling frames need matching asset sub-tags. Packing unlisted auxiliary items in the same crate risks immediate seizure of the entire shipment by customs.

A three-ton mould moving via ocean freight without vapor corrosion inhibitor barrier packaging will experience catastrophic parting-line pitting within fourteen days at sea.

Asset tags must stay visible while the mould is installed in the press. Painting over tags during routine shop maintenance or moving them to obscured edges violates bailment terms and complicates inventory audits by corporate accountants or customs officials.

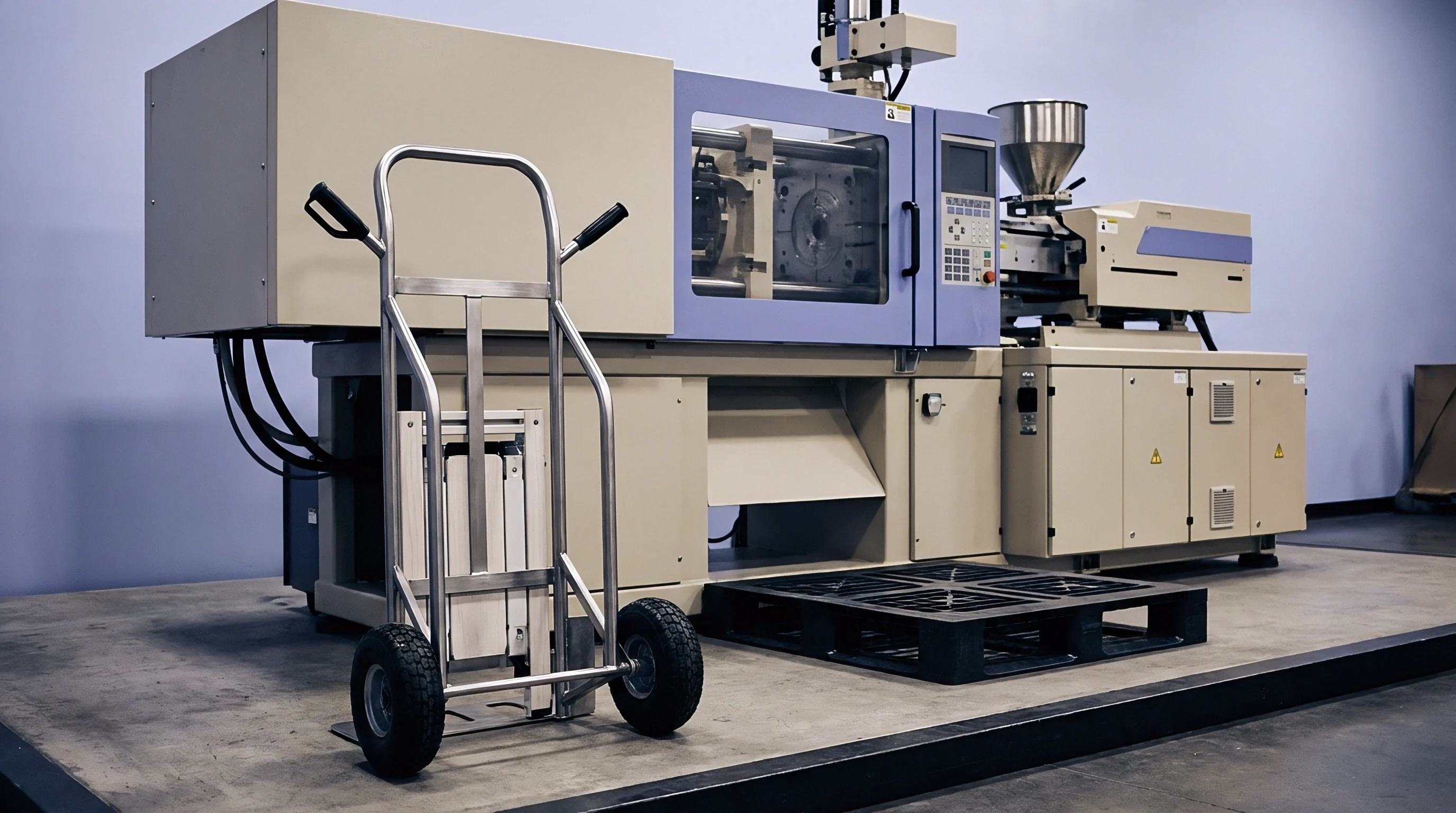

A large industrial injection molding machine, a hand truck, and a plastic pallet stand on a concrete floor in a light industrial setting.

Transit Damage Risks and Marine Cargo Insurance

Shipping heavy injection moulds internationally exposes delicate mechanisms to shock, vibration, and extreme environments. A drop or sudden movement during crane handling can shift heavy slide assemblies, shear guide pins, or crack beryllium copper inserts. Standard carrier liability under the Carriage of Goods by Sea Act caps shipping line responsibility at five hundred dollars per package, leaving the buyer exposed to major losses.

Carrying Institute Cargo Clauses (A) all-risks marine insurance is essential for international shipments. The policy should cover one hundred and ten percent of full replacement cost ~ including freight, duties, and emergency toolmaker travel for on-site repairs at the destination plant. Coverage must explicitly include rust and oxidation, mechanical derangement during transit, and unloading accidents at the receiving dock.

Crate preparation determines whether marine insurers pay transit damage claims. The mould must be drained of cooling water, blown dry, and coated with wax-based rust preventative. Parting lines need to be locked using heavy steel brackets bolted to the mould base plates.

The tool should be vacuum-sealed in a vapor corrosion inhibitor bag with industrial desiccants before being bolted down to reinforced wooden crate skids.

Poor crating leads to moisture ingress that destroys optical finishes, seizes slides, and causes long production delays.

Lien

Running tooling inside a contract manufacturer’s plant exposes the asset to claims from creditors, tax authorities, and landlords. Over normal operations, a plant incurs debts to resin suppliers, utilities, and commercial lenders. If the manufacturer faces insolvency, creditors frequently try to seize all physical equipment inside the building, regardless of who actually owns it under contract.

During commercial disputes, moulders often assert mechanics’ or artisan liens against customer-owned tooling. If a buyer holds back payment on defective parts, the supplier may refuse to release the mould, claiming a possessory lien for unpaid invoices or setup costs. In many jurisdictions, these statutory liens let the moulder hold the physical tool until financial claims are settled, halting the buyer’s production line.

Commercial contracts prevent illicit lien attachment by incorporating strict waiver language:

  1. Explicit statutory lien waivers require the supplier to waive all legal, equitable, and statutory liens, including moulder liens, storage liens, and artisan claims, agreeing to resolve commercial billing disputes purely through legal claims rather than asset detention.
  2. Public registration of ownership perfects the buyer’s title on national asset registries, providing constructive legal notice to all commercial lenders that the mould is unencumbered property of an external entity.
  3. Landlord subordination agreements require the factory building owner to formally waive all distress and distraint rights over customer-owned tooling located inside the leased manufacturing space.
  4. Negative pledge covenants legally prohibit the contract manufacturer from using customer-owned tooling as collateral for working capital loans, commercial lines of credit, or equipment financing facilities.

Foreign buyers frequently lose possession of high-value moulds when they fail to perfect their legal interest under local commercial statutes. A contract signed in California or London carries little weight against a local court bailiff seizing plant machinery in an overseas industrial zone. Protecting tooling from third-party attachment requires strict adherence to local asset perfection procedures.

A complex multi part steel tool insert with central cylindrical components rests on a dark wooden industrial workbench in a workshop.

Can Bailment Survive Moulder Insolvency Proceedings?

When a contract manufacturer enters bankruptcy or reorganization, all machinery inside the plant falls under the control of a court-appointed administrator or trustee. The trustee’s job is to maximize estate value for secured creditors. If the buyer’s tooling lacks clear, legally perfected documentation, the trustee will classify the mould as company property and schedule it for auction.

Surviving insolvency requires proving the mould is excluded property under applicable bankruptcy law. In the United States, filing a UCC-1 Financing Statement with the Secretary of State where the tool is located perfects the bailor’s interest under UCC Article 9. This public filing establishes that the arrangement is a true bailment rather than an unperfected security interest.

Without a filed UCC-1, bankruptcy courts can classify the buyer as an unsecured creditor, stripping away repossession rights.

Equivalent registration mechanisms exist in civil law jurisdictions. In Mexico, recording the bailment contract and asset details on the Public Registry of Commerce or the Single Registry of Movable Guarantees (RUG) establishes legal priority over local bankruptcy claims. In China, registering title interests with the Credit Reference Center of the People’s Bank of China offers similar protection against liquidators.

A production operator engages a control lever on an industrial machine containing metallic chips and a long metal rod in a manufacturing facility.

Public Registration and Security Interest Perfection

A written bailment agreement is a private contract between two parties that gives no legal notice to third parties. Banks extending lines of credit to a moulder rely on public registries and physical plant audits to assess collateral. If a bank holds a floating charge over all current and future equipment, that charge automatically attaches to any untagged, unperfected customer tooling on the factory floor.

Perfecting title requires public filing within strict statutory windows after the tool arrives at the plant. Under UCC rules, filing a precautionary UCC-1 financing statement before delivery ensures continuous perfection against intervening creditor claims. The filing must list serial numbers, asset tag identifiers, dimensions, and cavity configurations, accompanied by explicit notice: This filing is made for precautionary notice purposes to protect Bailor’s absolute ownership of bailed property.

Maintaining perfection requires tracking corporate changes. If the contract manufacturer merges, renames its corporate entity, or moves the tooling to a subsidiary in another jurisdiction, original filings can lapse. Bailment contracts should require sixty days’ written notice before any corporate reorganization or equipment relocation, giving the buyer time to refile before protection expires.

A precautionary financing statement filed twenty days after physical tool delivery loses legal priority to an existing commercial bank floating lien covering the facility.
A black steel injection mold cavity block hangs from a lifting hook inside a modern automated polymer manufacturing plant.

Subcontractor Downstream Possession Hazards

Tier-one manufacturers often send tools out to tier-two suppliers for secondary operations like texturing, plating, or insert molding. Sending a mould to an unauthorized vendor breaks the chain of custody. Since the subcontractor has no direct contract with the buyer, they can assert statutory artisan liens on the physical tool if the primary manufacturer fails to pay their invoices.

The bailment agreement must strictly forbid moving the mould, inserts, or auxiliary gear offsite without express written consent. If the manufacturer needs to send the tool out for laser welding, precision EDM, or etching, they must secure a signed Third-Party Bailment and Lien Waiver Agreement from the subcontractor beforehand. This document confirms the buyer’s sole ownership and explicitly waives possessory lien rights.

Preventing unauthorized movements takes regular audits. Sourcing teams can monitor location by embedding digital GPS tracking tags inside the mould base. These self-powered units broadcast location data over cellular or satellite networks if the tool leaves geofenced plant boundaries, letting the buyer intervene before the asset gets tied up in third-party claims.

As a practical matter, an unregistered tool sitting on a foreign factory floor belongs to the landlord the moment the rent check bounces.

Retrieval

Pulling an injection mould out of a hostile or distressed facility is the ultimate operational test of a bailment agreement. When commercial negotiations collapse or a supplier faces liquidation, manufacturers often lock the gates, turn away rigging crews, and hold tooling hostage. Executing a rapid, lawful extraction takes coordinated legal, logistical, and technical protocols prepared long before relationships break down.

Repossession starts with formal written notice terminating the bailment. The contract must give the buyer the unilateral right to end the bailment without cause on short notice ~ typically seven business days ~ or immediately for cause upon breach, insolvency, or unauthorized movement. This notice revokes the supplier’s possessory license, making any further retention civil conversion or criminal asset theft under local law.

Extracting tooling overseas requires specific legal remedies. In common law jurisdictions, securing a Writ of Replevin or emergency injunction compels court bailiffs or local police to enter the facility and seize the asset. In civil law jurisdictions, obtaining an ex parte attachment or judicial sequestration order requires presenting certified translations of the contract, purchase invoices, public registry filings, and wire receipts.

Without these certified records, local courts will reject emergency extraction petitions.

A transparent engineering polymer injection molded block with intricate internal flow paths rests on a display pedestal inside a modern testing facility.

Extraction Protocols during Commercial Disputes

When disputes heat up, contract moulders sometimes dismantle multi-cavity tooling, scattering inserts, hot runner manifolds, or slides across separate locations to render the retrieved mould useless. The bailment contract should define unauthorized disassembly or hiding components as intentional commercial sabotage, triggering liquidated damages and criminal exposure for theft.

Physical extraction requires independent, licensed heavy rigging specialists. Trying to move a multi-ton mould with unqualified labor risks dropped loads, cracked platens, and ruined hydraulic lines. Riggers should arrive with appropriate crane gear, heavy forklifts, certified transport safety bars, and industrial packaging materials to secure the tool the moment it comes off the press.

Security during extraction is critical. In tense situations, hiring local security personnel alongside court officers prevents altercations, plant blockades, or sabotage by factory staff. Once out the gate, the tool should go straight to a secure, neutral warehouse rather than a competitor’s plant, allowing for a complete technical inspection.

Tool Condition Verification Matrix at Handover
Inspection Zone Required Physical Verification Check Critical Acceptance Criteria Dispute Documentation Standard
Parting Line & Shut-Offs Optical microscope inspection of shut-off lands and pinch-offs Zero hobbing, burrs, pitting, or mechanical crushing damage High-resolution macro photography with calibrated depth scale
Cavity & Core Inserts Dimensional CMM sweep against master 3D CAD model; surface finish check All dimensions within drawing tolerance; SPI finish grades intact Coordinate measuring machine point-cloud deviation color map
Cooling Water Circuits Hydrostatic pressure testing at 8 bar for 15 minutes; flow rate check Zero external seal leaks; zero internal circuit channel cross-talk Calibrated digital flow meter and pressure drop log report
Ejection Mechanism Manual and hydraulic stroke cycling; return pin flushness check Smooth stroke across full length; zero ejector pin galling or bending Stroke clearance micrometer log and mechanical travel video
Electrical & Hot Runner Insulation resistance test; individual zone heater resistance check Mega-ohm readings exceeding 50 Mohms; heater resistances within 5% Calibrated digital multimeter electrical resistance audit sheet
A hand rests upon the cold steel edge of a large industrial mold component within a dimly lit production facility setting.

Physical Inspection at Handover Point

Taking possession of a mould without a formal press-side technical audit forfeits legal claims for hidden damage. Distressed suppliers short on cash often neglect hydraulic maintenance, run misaligned presses, or clean polished optical cavities with aggressive wire tools. A thorough physical inspection must occur at handover, documented and signed by engineers from both parties.

The handover audit evaluates every subsystem of the tool. Engineers must check electrical hot runner zones for correct resistance values to confirm that thermocouple wires and heater cartridges remain intact. Cooling lines require hydrostatic pressure testing to check for corroded or cracked internal baffles.

Parting lines, leader pin bushings, wear plates, and interlocks must be inspected for galling, cracks, or improper shims.

Signing the handover receipt closes the custody chain. The sign-off document must detail the physical condition of the tool, exact shot count, auxiliary controllers present, and a complete inventory of spare parts. If the tool shows damage beyond normal, documented wear, the certificate needs detailed photographic and dimensional evidence to support future legal claims for repairs and downtime costs.

Whether international arbitration tribunals can enforce emergency repossession orders fast enough to save seasonal production schedules before local bailiffs arrive remains an open question.

Nomenclature

Injection Mould Bailment

Meaning ~ Legal bailment agreement wherein an original equipment manufacturer transfers physical possession of an injection mould to a contract moulder without transferring title or ownership rights.

Vapor Corrosion Inhibitor

Meaning ~ Chemical substance that releases protective vapors to prevent the oxidation of metal surfaces in an enclosed environment.

DIN 16742

Meaning ~ Thermoplastic moulded component tolerance specification DIN 16742 governs dimensional deviations across manufactured polymer parts.

Cpk Capability Study

Meaning ~ Statistical calculations compare the actual distribution of part measurements against the specific width of the engineering tolerance limits to determine process stability.

Part Submission Warrant

Meaning ~ Documentation accompanying a production part approval request provides the formal declaration that a manufacturer meets all customer requirements for a specific component.

Steel Safe Adjustments

Meaning ~ Precision tooling design practice where mold cavity dimensions are cut intentionally small, or core dimensions cut intentionally large, leaving removable steel material for fine tuning after initial trial moulding.

H13 Tool Steel

Meaning ~ Chromium-molybdenum-vanadium alloy steel provides a high level of thermal fatigue resistance for metal moulds utilized in high pressure casting and extrusion.

Parting Line Shut-off

Meaning ~ Contact surface where the two halves of an injection mold meet to contain the molten plastic under high pressure.

Shot Counter Telemetry

Meaning ~ Remote data transmission systems monitor and record the cumulative molding cycles of active injection molds through sensors mounted directly on the tool.

HS 8480.71

Meaning ~ International Harmonized System six-digit classification code designated for injection or compression type moulds used for rubber or plastics manufacturing.

Bailment Agreement

Meaning ~ Legal contract establishing a relationship where one party holds physical possession of a polymer mould or manufacturing asset owned by another party.

Title Transfer Protocol

Meaning ~ Contractual framework defining the precise operational and geographical milestone where legal ownership and risk of loss for resin shipments or tooling transfer from seller to buyer.

What the firm knows, published

Expertise is a utility, not a secret. sentiention™ publishes its working knowledge as open reference: intelligence layer covering the materials it sources, the markets it enters, and the reference that serves both.
