Polypropylene Heterophasic Copolymer Selection Guidelines for Frozen Packaging Containers
Polypropylene impact copolymers for frozen containers balance rubber content and viscosity matching to prevent cold brittle failure at minus twenty degrees.
Composition
Heterophasic polypropylene copolymers consist of two distinct polymer phases synthesized sequentially in interconnected reactor vessels. A semi-crystalline isotactic polypropylene homopolymer or a random copolymer with low ethylene content forms the continuous matrix, hosting a dispersed amorphous ethylene-propylene rubber phase. This dual-phase arrangement delivers low-temperature impact strength while maintaining the stiffness required for vertical stacking.
Reactor Architecture and Phase Separation
Polymerization starts in a primary loop or gas-phase reactor where propylene monomer forms the isotactic homopolymer matrix. This initial stage governs the flexural modulus and thermal deflection characteristics of the finished resin. Tensile yield strength tracks matrix isotacticity closely, with high-isotacticity homopolymers reaching stiffness values above 1500 MPa at room temperature.
Active polymer granules then move into a secondary gas-phase reactor where ethylene and propylene react concurrently within the porous homopolymer particles to yield elastomeric ethylene-propylene rubber droplets. These dispersed inclusions typically measure between 0.5 and 2.0 micrometers across, and their size distribution largely dictates how the material dissipates energy during sudden impacts.
Increasing ethylene content in the rubber phase softens the disperse domain without altering matrix stiffness.
Morphology depends heavily on the intrinsic viscosity ratio between the rubber phase and the homopolymer matrix. Matching these viscosities at processing shear rates yields fine, spherical droplets during compounding. A significant mismatch leads to coarse rubber agglomerates or elongated fibrillar networks; domains exceeding 3.0 micrometers tend to form micro-voids that initiate brittle crack propagation during sub-zero drop tests.
Xylene Soluble Fraction and Ethylene Partitioning
Boiling xylene extraction separates the amorphous rubber fraction from the semi-crystalline matrix, providing a direct measure of total elastomer loading. Standard frozen packaging grades run between 12 wt% and 26 wt% xylene solubles. Higher fractions enhance low-temperature ductility, though at the expense of container top-load strength.
The ethylene concentration within this xylene-soluble portion governs the glass transition temperature of the rubber phase, with optimal levels falling between 40 wt% and 55 wt%. Within this window, the elastomer achieves maximum flexibility without forming semi-crystalline polyethylene segments that would stiffen the rubber domains at minus twenty degrees Celsius and undermine impact resistance.
| Grade Classification | Melt Flow Rate (230°C/2.16kg) | Xylene Solubles (wt%) | Ethylene in Rubber (wt%) | Flexural Modulus (23°C) | Charpy Impact (-20°C) |
|---|---|---|---|---|---|
| High-Stiffness TWIM Grade | 70 g/10min | 14 wt% | 42 wt% | 1450 MPa | 4.5 kJ/m² |
| Balanced Freezing Packaging Grade | 45 g/10min | 18 wt% | 50 wt% | 1200 MPa | 7.5 kJ/m² |
| High Impact Super-Tough Grade | 12 g/10min | 25 wt% | 55 wt% | 950 MPa | 14.0 kJ/m² |
| High-Clarity Heterophasic Grade | 30 g/10min | 16 wt% | 38 wt% | 1100 MPa | 6.0 kJ/m² |
Balancing ethylene partitioning within the xylene-soluble phase preserves container sidewall rigidity while protecting against sub-zero brittle fracture.
Cold
Sub-zero storage shifts polyolefin packaging from ductile yield to abrupt brittle failure. Unmodified homopolymer polypropylene turns glassy near zero degrees Celsius, leaving containers vulnerable to shattering on drop impact. Heterophasic copolymers counteract this embrittlement through the damping action of their dispersed rubber domains.
Glass Transition Mechanics of the Dual Phases
The homopolymer matrix undergoes its glass transition near zero degrees Celsius. Below this threshold, molecular mobility drops sharply, halting plastic deformation and causing applied stress to focus around part radii, gates, or surface flaws where cracks propagate rapidly.
By contrast, the ethylene-propylene rubber inclusions stay elastic down to their glass transition range of minus fifty to minus fifty-five degrees Celsius. Under impact, these rubber particles act as local stress concentrators that trigger controlled crazing and shear banding through the stiff matrix, blunting micro-cracks before they reach critical dimensions.
An impact copolymer carrying twenty percent xylene solubles yields a notched Charpy value of eight kilojoules per square meter at minus twenty degrees Celsius under ISO 179-1eA.
Low Temperature Brittle Failure Modes
Containers in cold distribution chains usually fail at high-stress transitions, particularly base-to-wall radii. Ambient testing rarely predicts these failures because high strain rates shift the ductile-to-brittle transition upward; cold drop testing at minus twenty degrees Celsius reveals brittle liabilities that slow-speed tensile checks miss.
- Base corner fracturing ~ Impact forces during drop tests concentrate at the gate region where high residual orientation lowers transverse impact strength.
- Rim cracking during denesting ~ Automatic filling lines apply tensile stress to container rims, causing brittle snap-cleavage when denesting frozen stackable tubs.
- Hinge split under load ~ Living hinges on snap-fit closures fail when frozen rubber domains cannot deform rapidly enough to relax local flexural strain.
- Sidewall buckling under stack pressure ~ Palletization at sub-zero temperatures forces thin-walled tubs to yield under compressive creep when rubber content is excessive.
Selecting an impact copolymer with insufficient elastomer content or an elevated glass transition point results in container failure during cold-storage transport and automated warehouse handling.
Viscosity
Melt viscosity under shear governs mold filling in thin-walled packaging. Thin-wall injection molding generally requires melt flow rates between 30 and 100 grams per ten minutes, allowing sections as thin as 0.4 millimeters to fill completely before freezing against the tool walls.
What Intrinsic Viscosity Ratio Prevents EPR Phase Coalescence?
Maintaining a fine rubber dispersion requires matching the melt viscosity of the elastomer phase to that of the homopolymer matrix under injection shear. The intrinsic viscosity ratio between the xylene-soluble rubber and the matrix fraction determines domain stability, with the practical operating window sitting between 0.9 and 1.2.
Ratios above 1.5 produce large rubber domains that resist breakup during processing. Conversely, when the ratio drops below 0.7, the low-viscosity rubber stretches into thin planar sheets during cavity filling, creating weak laminations that split under cold impact.
| Intrinsic Viscosity Ratio ( XS/ KM) | Rubber Dispersion Size (µm) | Flow Behavior | Weld Line Strength (-20°C) | Cold Drop Performance |
|---|---|---|---|---|
| 0.5 | 0.2 to 0.4 µm | Low phase boundary resistance | Weak weld lines | Ductile-to-brittle transition at -10°C |
| 1.0 (Optimal) | 0.8 to 1.2 µm | Uniform domain distribution | High weld line strength | Ductile-to-brittle transition at -30°C |
| 1.6 | 2.5 to 5.0 µm | Coalescence during high shear | Low impact resistance | Ductile-to-brittle transition at -15°C |
| 2.2 | Above 8.0 µm | Severe phase separation | High mechanical anisotropy | Brittle fracture at 0°C |
Melt Flow Index and Molecular Weight Distribution
Resins formulated for thin-wall packaging trade polymer chain length for fast cavity filling. Increasing melt flow rates via controlled rheology peroxide visbreaking narrows the molecular weight distribution. Repeated regrind scission reduces chain entanglements, improving flow length but eroding environmental stress crack resistance and cold toughness.
Controlled rheology impact copolymers retain better toughness than homopolymers at equivalent melt flow rates because peroxide cracking targets the matrix while leaving the rubber phase largely intact. Rubber intrinsic viscosity stays stable while the matrix chains shorten to ease flow.
Proprietary reactor modifications can partially preserve impact performance in high melt flow rate grades, though matrix molecular weight inevitably drops as flow rates increase.
Measurement
Standardized testing establishes concrete criteria for qualifying incoming polymer lots. Relying on published datasheets presents operational risks, as listed values reflect ideal test specimens rather than actual container performance. Systematic plant verification ensures material compliance prior to silo loading.
Standard Analytical Standards for Grade Verification
Receiving inspection protocols verify matrix composition and elastomer loading against purchase agreements. Melt flow rate testing follows ISO 1133-1 condition M at 230 degrees Celsius under a 2.16 kilogram load, while xylene-soluble fractions are determined per ISO 16152 to confirm rubber content.
Charpy notched impact tests per ISO 179-1eA at minus twenty degrees Celsius provide realistic indicators for freezer applications. Thermal transitions are measured through differential scanning calorimetry per ISO 11357-3 to track melting points and heats of fusion, where lower enthalpy values indicate lower matrix crystallinity and reduced sidewall stiffness.
Discrepancies exceeding two grams per ten minutes in melt flow rate relative to specification allow the buyer to reject the incoming resin lot at the supplier expense under standard polyolefin delivery terms.
Incoming Inspection Protocol
Bulk railcar and silo deliveries require systematic sampling before transfer into plant storage systems.
- Sample ten incremental bags per lot using a stainless steel thief sampler according to ISO 582.
- Measure melt mass-flow rate at 230 degrees Celsius under a 2.16 kilogram load per ISO 1133-1.
- Determine xylene soluble fraction percentage by solvent extraction in xylene at 135 degrees Celsius following ISO 16152.
- Run differential scanning calorimetry to measure peak melting temperature and enthalpy of fusion per ISO 11357-3.
- Perform instrumented impact testing on compression-molded plaques at minus 20 degrees Celsius per ISO 6603-2.
Mandating ISO 179-1eA impact performance at minus twenty degrees Celsius as a contractual lot-release condition protects converters against brittle failures caused by off-spec compounding.
Molding

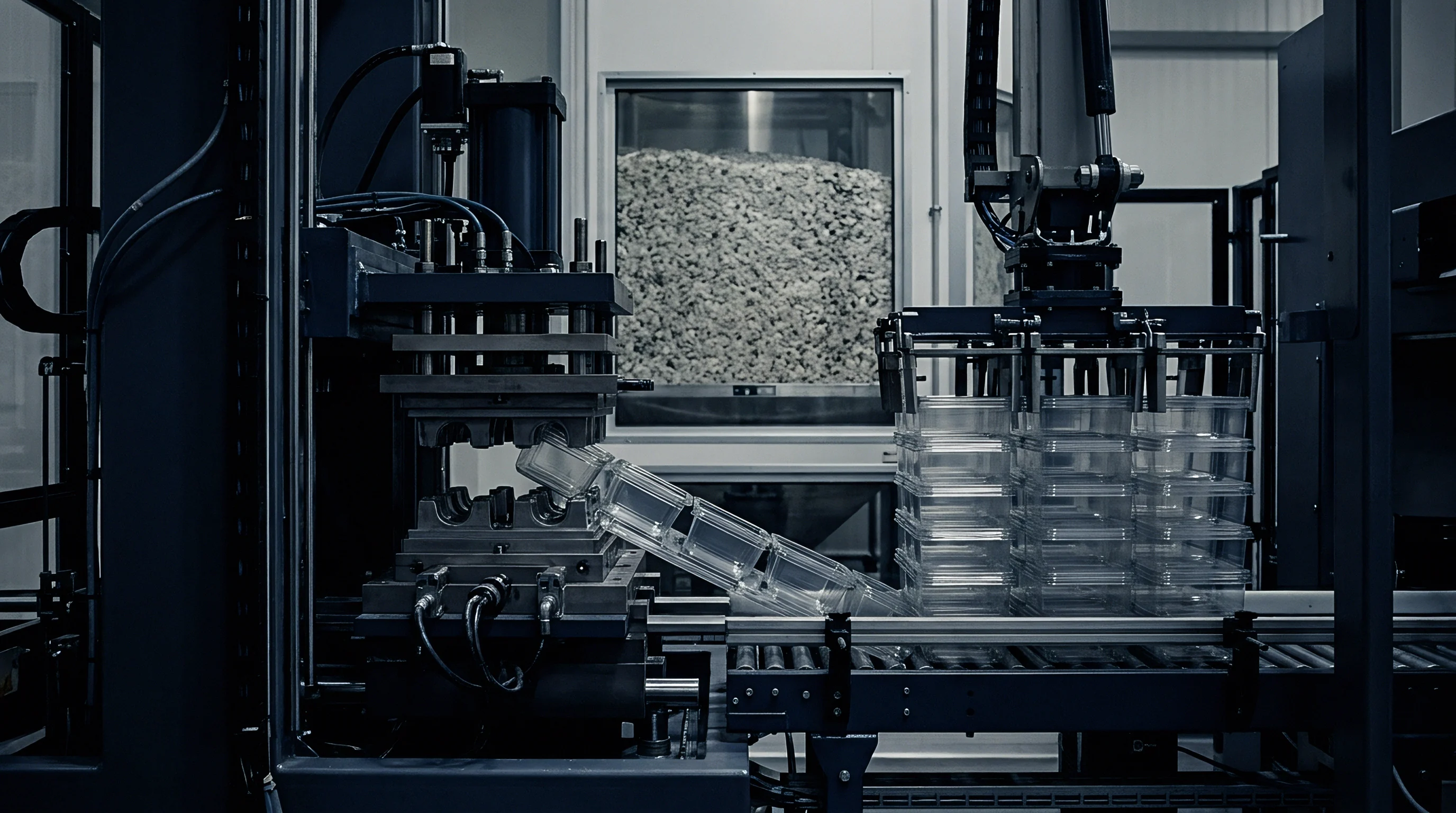

High-speed injection subjects polymer melts to extreme shear within thin cavity sections, often surpassing 100,000 reciprocal seconds through narrow runner gates. This shear levels the matrix chains near part surfaces and elongates spherical rubber domains into directional strands.
Crystalline Nucleation and Cooling Kinetics
Hyper-nucleating agents and organophosphate salts raise the peak crystallization temperature during cooling, accelerating solidification and shortening cycle times. Faster crystallization sets the final crystalline structure earlier in the cycle.
Nucleators refine spherulite dimensions, producing smaller, densely packed crystalline units that reduce light scattering and relieve internal stress concentrations. Rapid crystallization also fixes the dispersed rubber phase in place, preventing domain coalescence during slower cooling in thicker part sections.
Gate shear induces strong orientation in the outer skin, while inadequate resin drying causes surface splay.
Wall Thickness and Cavity Fill Dynamics
Molding containers with wall thicknesses below one millimeter requires high injection pressures and balanced runner layouts. The melt freezes rapidly against cold steel cavity walls, narrowing the effective flow channel. Raising melt temperatures offsets flow resistance but extends cooling requirements.
- Melt temperature management ~ Set cylinder temperatures between 200 and 240 degrees Celsius to prevent thermal degradation of the matrix while ensuring uniform flow.
- Injection velocity control ~ Utilize high-speed injection profiles to fill thin sections under 0.8 millimeters before freeze-off occurs at the mold cavity wall.
- Mold temperature regulation ~ Maintain cavity surfaces between 15 and 30 degrees Celsius to achieve rapid crystallization without inducing high residual stress.
- Back pressure setting ~ Apply 5 to 10 MPa hydraulic back pressure during screw recovery to homogenize additive masterbatches and stabilize shot weight.
Proper mold cooling balancing maintains uniform crystalline morphology across all cavities from shot to shot.
Settlement
Resin purchasing balances pellet pricing against total finished-part conversion costs. While high-flow, hyper-nucleated grades carry price premiums per metric tonne, productivity gains from shorter cycle times and lightweighting often offset the higher material cost.
Raw Material Price Drivers and Contract Terms
Heterophasic copolymer pricing tracks monomer feedstocks plus an additive compounding premium. High-rubber formulations are sensitive to ethylene monomer costs because greater xylene-soluble targets require higher ethylene input during polymerization.
Supply agreements define allowable property ranges for incoming shipments. Melt flow rate tolerances should remain within plus or minus ten percent of nominal targets; wider variance forces ongoing machine adjustments, driving up scrap rates and cycle instability.
Part mass reduction delivers greater manufacturing cost savings than negotiating resin pricing discounts per metric tonne.
Unit Part Cost and Mass Optimization Calculation
Thinning container sidewalls cuts both resin consumption and cooling duration. Density shifts alter finished part volume, and bulk silo contamination can compromise full production runs.
Consider an injection molding production line manufacturing 500 milliliter frozen food packaging tubs operating on a four-cavity tool at 6,000 operating hours per year. Substituting a standard melt flow rate 25 g/10min grade with a wall thickness of 0.80 millimeters for a hyper-nucleated melt flow rate 70 g/10min grade enables wall thinning to 0.55 millimeters.
| Parameter / Cost Component | Standard Impact PP (MFR 25) | High-Flow Impact PP (MFR 45) | Hyper-Nucleated High-Flow PP (MFR 70) |
|---|---|---|---|
| Wall Thickness | 0.80 mm | 0.65 mm | 0.55 mm |
| Container Weight | 14.5 g | 11.8 g | 10.0 g |
| Cycle Time | 5.2 s | 4.1 s | 3.2 s |
| Part Output per Hour (8-cavity tool) | 5,538 parts | 7,024 parts | 9,000 parts |
| Resin Cost per Metric Tonne | 1,350 EUR | 1,420 EUR | 1,510 EUR |
| Machine Hourly Operating Rate | 45.00 EUR | 45.00 EUR | 45.00 EUR |
| Landed Cost per 1,000 Parts | 27.70 EUR | 23.16 EUR | 20.10 EUR |
| Assumptions: 8-cavity tool, 95 percent overall equipment effectiveness, machine rate includes electric power and direct labor, excluding packaging and freight. | |||
The unit part calculation demonstrates that paying a 160 EUR per metric tonne premium for the nucleated high-flow resin yields a 27.4 percent reduction in finished part manufacturing cost. The cost savings stem directly from a 31 percent mass reduction per container combined with a 38.4 percent reduction in mold cooling duration. The financial gain from cycle time acceleration and mass reduction exceeds the added raw material cost within the first month of continuous production.
Uncertainty remains regarding how shifting secondary recyclate content regulations will alter the long-term price spread between virgin heterophasic copolymer grades and chemically recycled polyolefin feedstocks.
